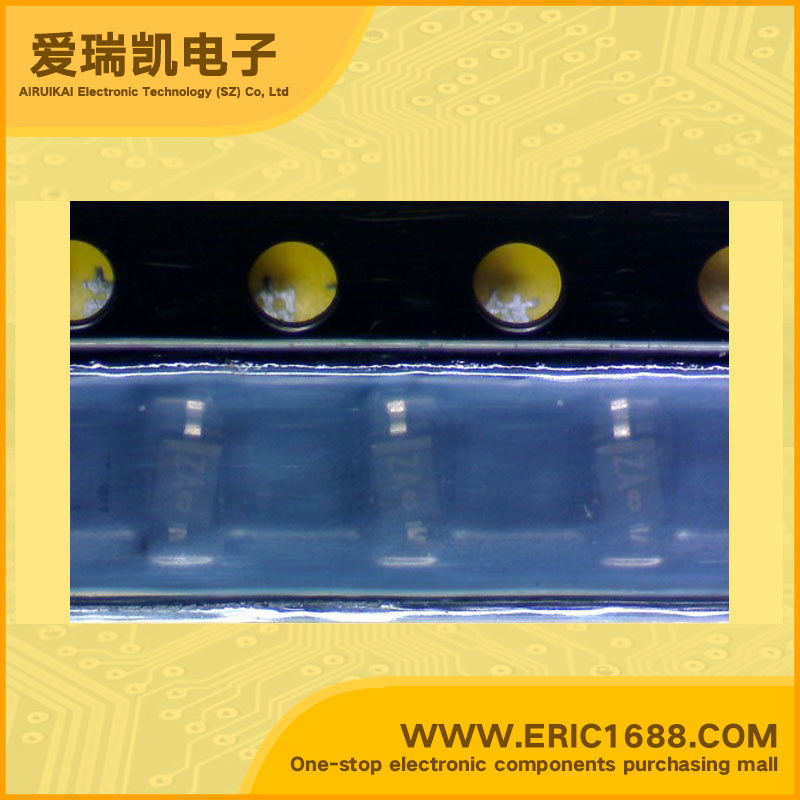

ENGSD05UT2 TVS/ESD 5V 0.2W/200mW SOD323/0805-5V marking ZA
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.8V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 300W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | 0.2W/200mW |
| Description & Applications | Transient Voltage Suppressor Diode；Specification Features: • Steady State Power Routing of 200 mW • Peak Power − 350 W (8 * 20 us) • Low Leakage • Cathode Indicated by Polarity Band • Package Weight: 4.507 mg/wmt • Meets IEC61000−4−2 Level 4, 15 kV (Air), 8 kV (Contact) • Meets IEC6100−4−4 Level 4, 40 A • Meets IEC6100−4−5 (Lightning), 24 A • Meets 16 kV Human Body Model ESD Requirements • Pb−Free Packages are Available |
| 描述与应用 | 瞬态电压 抑制二极管;规格特性： •稳态功率为200兆瓦的路由 •峰值电力 - 350瓦（8 *20us） •低漏 •负极指示的极性频带 •包装重量：4.507毫克/ WMT •符合IEC61000-4-2第4级，15 kV（空气），8 kV（联系） •符合IEC6100-4-4第4级，40 A •符合IEC6100-4-5（闪电），24 A •符合16 kV人体模型ESD要求 •无铅包可用 |
