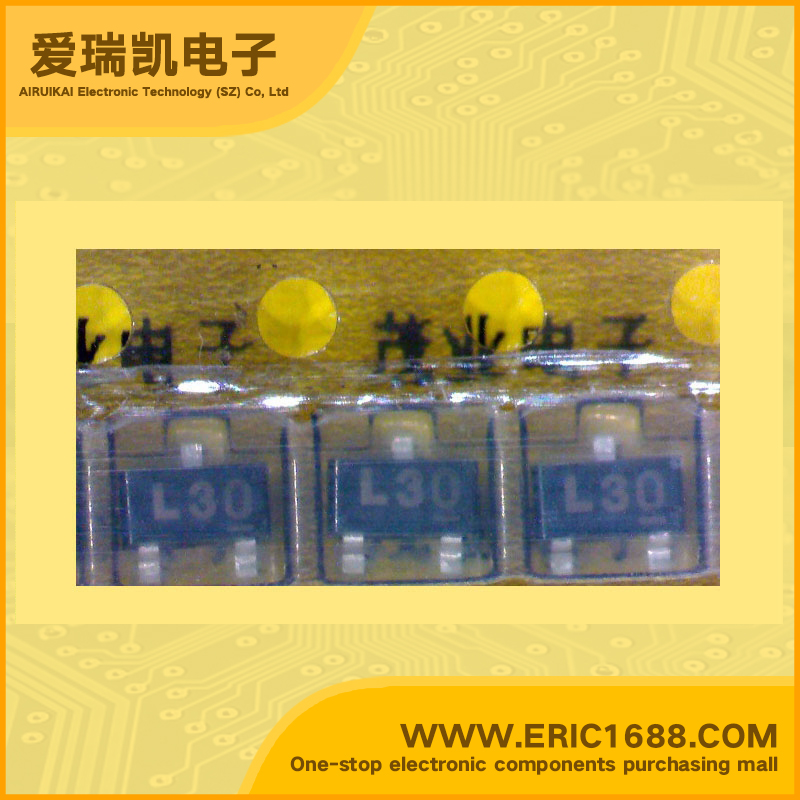

FA1L4L NPN Bipolar Digital Transistor (BRT) 60V 100mA/0.1A 10k 22k gain60-340 SOT-23/SC-59 marking L30
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 22KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.46 |
| 直流电流增益hFE DC Current Gain(hFE) | 60-340 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Features Resistors Built-in Type Complementary to FN1L3L |
| 描述与应用 | 特性 内置电阻型 对管是FN1L3L |
