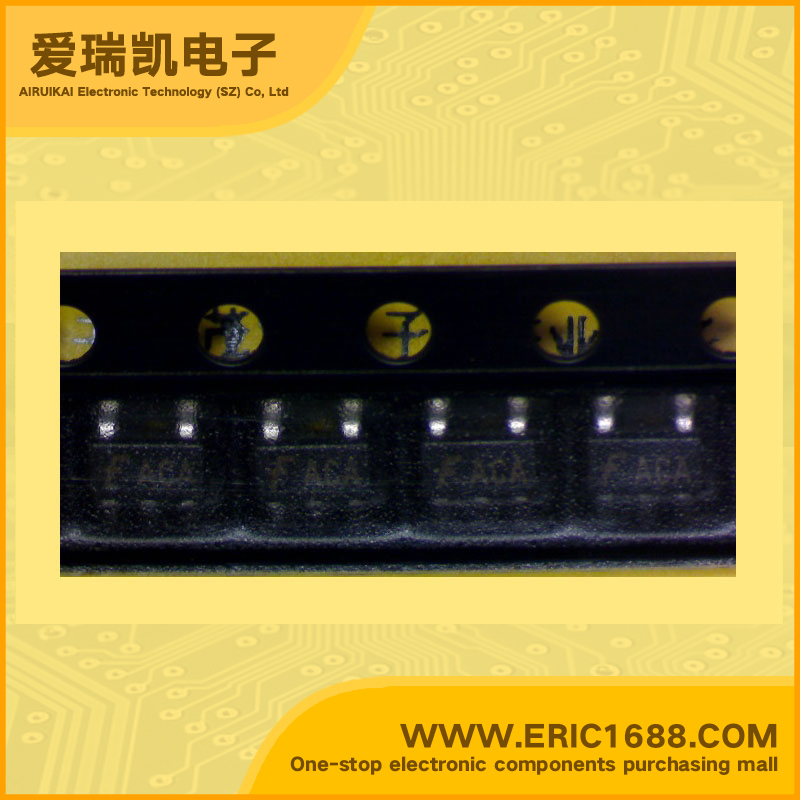

FAN2500SX LDO Voltage Regulator Adjustable 100mV/0.1V With Enable Pin SOT-153/SOT23-5 marking ACA Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6.5V |
| 输出电压VOUT Voltage - Output | 可调/adj |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 100mV/0.1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 100 mA CMOS LDO Regulators；•Ultra Low Power Consumption •100 mV dropout voltage at 100 mA •25 µA ground current at 100 mA • Enable/Shutdown Control • SOT23-5 package • Thermal limiting • 300 mA peak current Applications • Cellular Phones and accessories • PDAs • Portable cameras and video recorders • Laptop, notebook and palmtop computers |
| 描述与应用 | 100毫安的CMOS LDO稳压器;•超低功耗 •100 mV的电压差在100 mA •25μA接地电流在100 mA •使能/关断控制 •SOT23-5封装 •热限制 •300 mA峰值电流 应用 •手提电话及配件 •掌上电脑 •便携式摄像机和录像机 •笔记本电脑，笔记本电脑和掌上电脑 |
