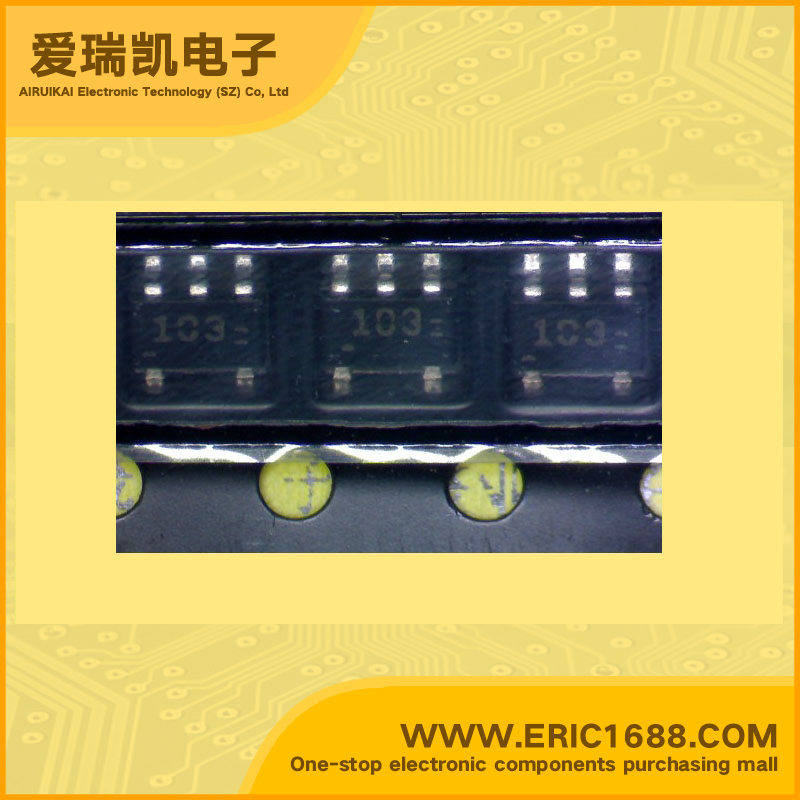

FC103 PNP+PNP Complex Bipolar Transistor -55V -150mA HEF=160~600 SOT-153/CPH5/SC-74A marking 103 switch and digital circuit application
|
V(BR) CBO Collector-Base Voltage |
-55V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -150MA |
| Transtion Frequency(fT) | 180MHZ |
| DC Current Gain(hFE) | 160~600 |
|
VCE(sat) Collector-Emitter Saturation Voltage |
-0.4V |
| Power Dissipation (Pd) | 0.2W |
| Description & Applications | Features • PNP Epitaxial Planar Silicon composite Transistors• low-frequency general purpose amp.• composite type with 2 transistors contained in the CP package currently in use,improving the mounting efficiency greatly• the FC103 is formed with two |
| Technical Documentation Download | Read Online |
