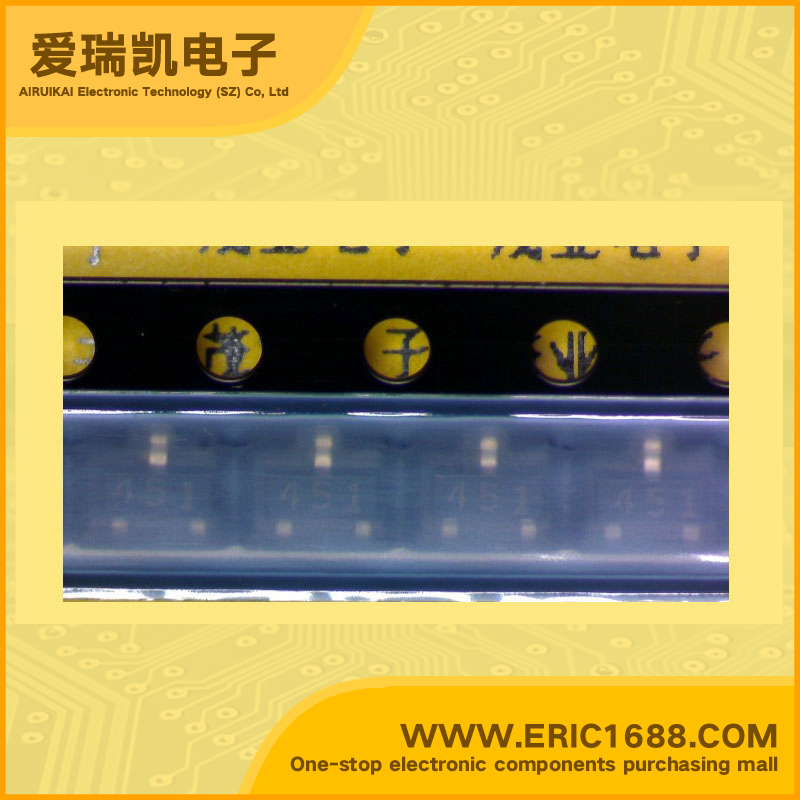

FMMT451TA NPN Transistors(BJT) 80V 1A 150MHz 50~150 350mV/0.35V SOT-23/SC-59 marking 451
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~150 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 350mV/0.35V |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | SOT23 NPN SILICON PLANAR HIGH PERFROMANCE TRANSISTOR Low equivalent on-resistance 1 Amp continuous current Ptot= 500 mW COMPLEMENTARY TYPE FMMT551 |
| 描述与应用 | SOT23 NPN硅平面高性能晶体管 低等效导通电阻 1安培连续电流 Ptot= 500 mW 互补型？ FMMT551 |
