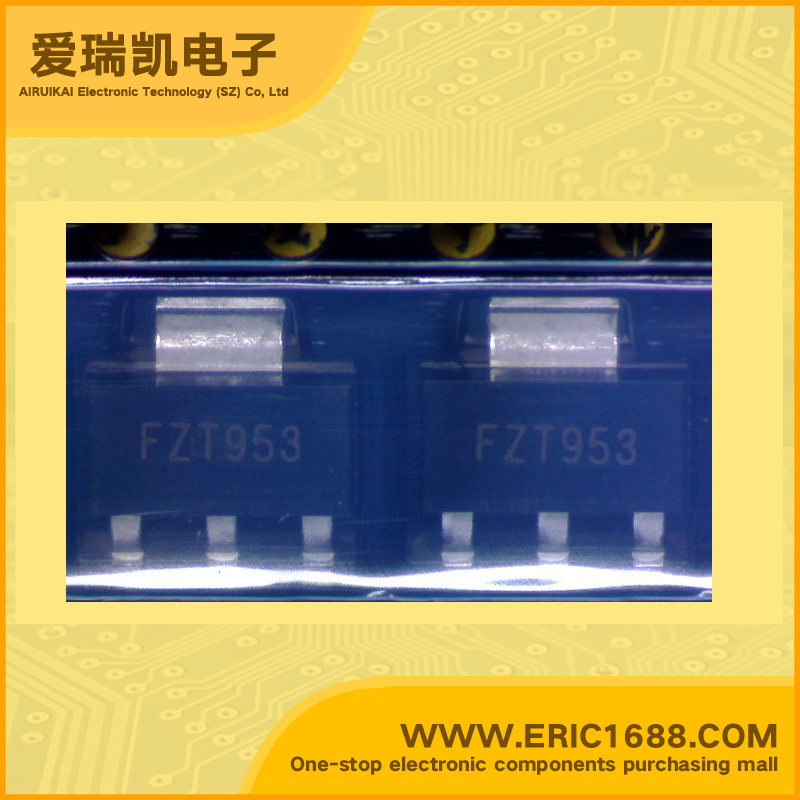

FZT953TA PNP transistors（BJT） -140V -5A 125MHz 100~300 -420mV/-0.42V SOT-223 marking FZT953 high current/low saturation voltage
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -140V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −100V |
| 集电极连续输出电流IC Collector Current(IC) | -5A |
| 截止频率fT Transtion Frequency(fT) | 125MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -420mV/-0.42V |
| 耗散功率Pc PoWer Dissipation | 3W |
| Description & Applications | PNP SILICON PLANAR HIGH CURRENT TRANSISTORS FEATURES 5 Amps continuous current , up to 15 Amps peak current Very low saturation voltages Excellent gain characteristics specified up to 10 Amps COMPLEMENTARY TYPES FZT853 |
| 描述与应用 | PNP硅平面高电流晶体管 特点 5安培连续电流高达15安培的峰值电流 极低的饱和电压 出色的增益特性可达10安培 互补类型FZT853 |
