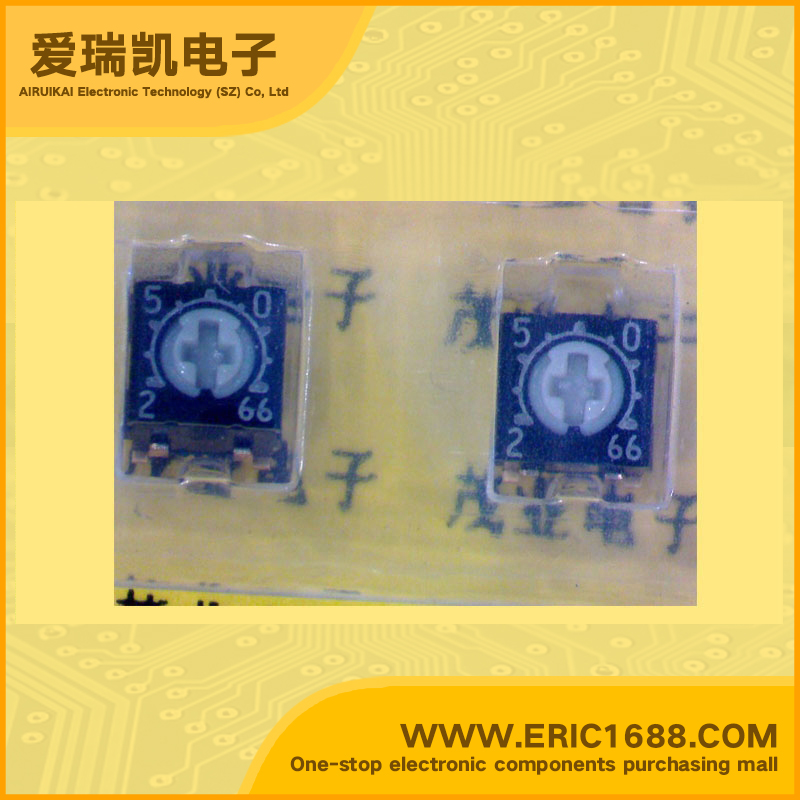

3mm square SMD, single-turn, sealed cermet trimmers G32ATB502M 5KΩ/Ohm 3X3-5K marking 502
| 电阻值 Resistance |
5KΩ/Ohm |
| 额定功率 Power |
0.125w,1/8w |
| 容差 Tolerance |
±20% |
| 温度系数 Temperature Coefficient |
±100ppm/°C |
| 圈数 Number of Turns |
单圈 Single |
| 调节类型 Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型 Termination Style |
J引线 J Lead |
| Description & Applications | ● 3mm square SMD, single-turn, sealed cermet trimmers ● Available in J-hook and gull-wing terminal configurations ● Meets EIA, EIAJ, IPC, VECI standard SMD trimmer designs ● Pb-free and Cd-free construction ● RoHS compliant ● Gold-plated leads provide high conductivity, low contact resistance, high corrosion resistance and good solderability ●Top cross-slot adjustment (top single-slot models available as special order) ● Tape and reel packaging |
| 描述与应用 | ●3mm的方形贴片，单圈，密封陶瓷剪 ●可在J型钩和鸥翼式终端配置 ●符合EIA，EIAJ，IPC，VECI标准SMD微调设计 ●无铅无镉建设的 ●符合RoHS标准 ●黄金镀线索提供高导电性，低接触电阻，高耐腐蚀性，良好的可焊性 ●顶部十字槽调整（顶级单插槽机型，可作为特殊订货） ●磁带和卷轴包装 |
