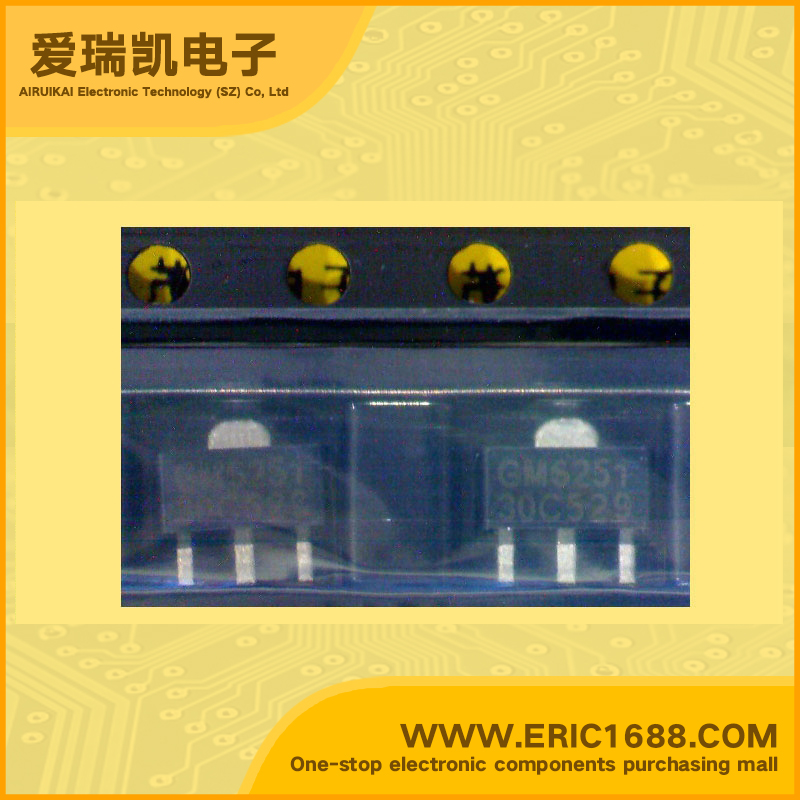

GM6251-3.0ST89R LDO Voltage Regulator 3V 400mV/0.4V SOT-89 marking GM6251/30C529 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 12V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 250mA/0.25A |
| 最大压降VDO Voltage - Dropout | 400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | 250MA ULTRA-LOW DROPOUT POSITIVE VOLTAGE REGULATOR ;•Maximum output current 250mA •Output voltage: from 1.8 V to 6.0V in 0.1V increments •Output voltage ±2% •CMOS low power consumption, typically •1.0µA at VOUT= 5.0V •Input stability typically 0.2%/ V •Ultra-low dropout voltage 0.38V @ I = OUT •200mA at VOUT = 5.0V •Small input/ output differential: •0.4V at 160mA (V = 3.3V)OUT |
| 描述与应用 | 250毫安超低压差正电压稳压器;•最大输出电流250mA •输出电压：1.8 V至6.0V，在0.1V递增 •输出电压±2％ •CMOS低功耗，通常 •1.0μA于VOUT= 5.0V •输入稳定性一般为0.2％/ V •超低压降电压0.38V@ I= 输出 •200毫安VOUT= 5.0V •小输入/输出差分： •0.4V在160毫安（V=3.3V）输出 |
