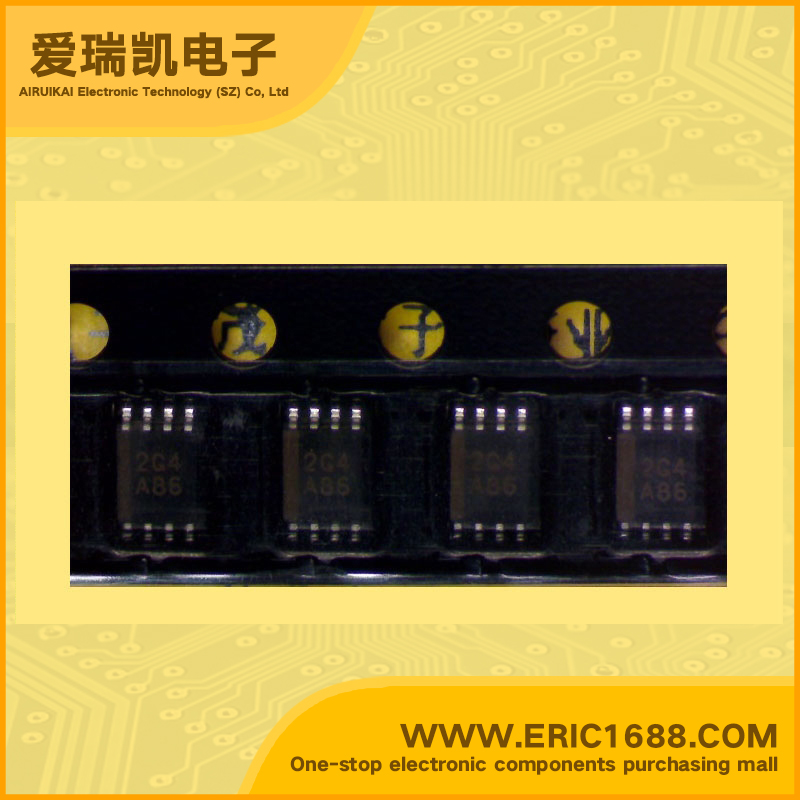

Integrated Circuit(IC) XOR gate HD74ALVC2G86USE SSOP8 marking A86

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.2V~3.6V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-24mA,24mA
低逻辑电平
Logic Level - Low
0.7V~0.8V
高逻辑电平
Logic Level - High
1.7V~2.0V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3ns @ 3.3V,30pF
Description & ApplicationsDual 2-input Exclusive-OR Gates;Features The basic gate function is lined up as Renesas uni logic series. Supplied on emboss taping for high-speed automatic mounting. Supply voltage range : 1.2 to 3.6 V Operating temperature range: −40 to +85°C All inputs VIH (Max.) = 3.6 V (@VCC = 0 V to 3.6 V) All outputs VO (Max.) = 3.6 V (@VCC = 0 V) Output current ±2 mA (@VCC = 1.2 V) ±4 mA (@VCC = 1.4 V to 1.6 V) ±6 mA (@VCC = 1.65 V to 1.95 V) ±18 mA (@VCC = 2.3 V to 2.7 V) ±24 mA (@VCC = 3.0 V to 3.6 V)
描述与应用双路双输入异或门;特性 基本门功能一字排开作为瑞萨单向逻辑系列。 提供浮雕高速自动安装录音。 电源电压范围:1.2〜3.6 V 工作温度范围:-40至+85°C 所有输入VIH(最大)=3.6 V(@ VCC=0 V至3.6 V) 所有输出VO(最大)=3.6 V(VCC=0 V) 输出电流±2毫安(@ VCC=1.2 V) ±4毫安(@ VCC=1.4 V至1.6 V) ±6毫安(​​@ VCC= 1.65 V至1.95 V) ±18毫安(@ VCC=2.3 V到2.7 V) ±24毫安(@ VCC= 3.0 V到3.6 V)
