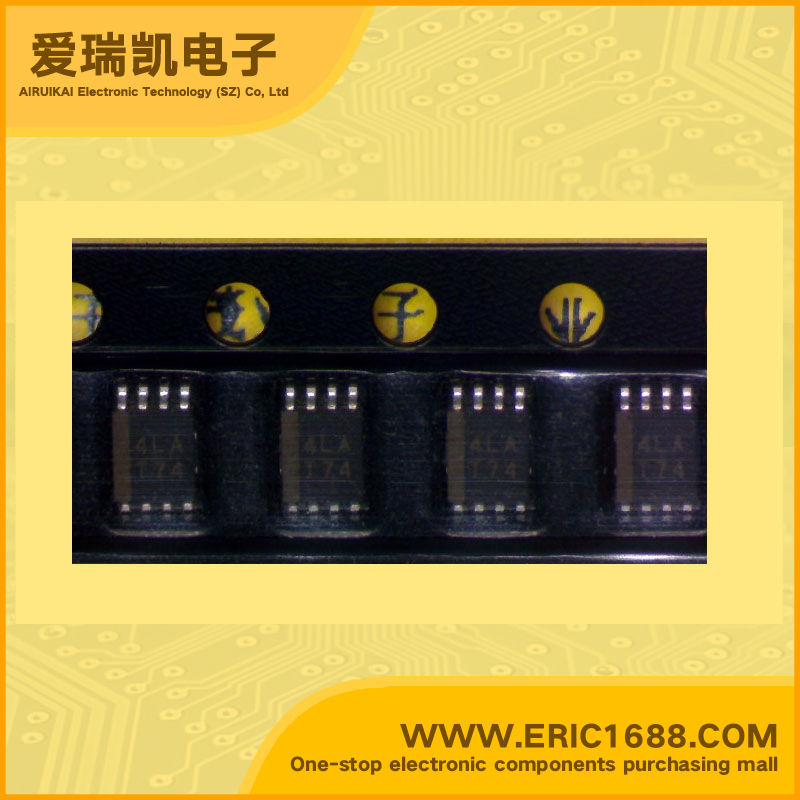

Integrated Circuit（IC） positive edge Flip Flops HD74LV2GT74AUSE SSOP8 marking T74
| 逻辑类型 Logic Type | 设置（预设）和复位 Set(Preset) and Reset |
| 电路数 Number of Circuits | D型 D-Type |
| 输入数 Number of Inputs | 差分 Differential |
| 电源电压Vcc Voltage - Supply | 1 |
| 静态电流Iq Current - Quiescent (Max) | 1 |
| 输出高，低电平电流 Current - Output High, Low | 79MHz |
| 低逻辑电平 Logic Level - Low | 1ns |
| 高逻辑电平 Logic Level - High | 正边沿 Positive Edge |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 12mA，12MA |
| Description & Applications | -0.5-7.0V |
| 描述与应用 | Single D-type Flip Flops with Preset and Clear Features • The basic gate function is lined up as Renesas uni logic series. • Supplied on emboss taping for high-speed automatic mounting. • Supply voltage range : 1.2 to 3.6 V Operating temperature range: −40 to +85°C • All inputs VIH (Max.) = 3.6 V (@VCC = 0 V to 3.6 V) All outputs VO (Max.) = 3.6 V (@VCC = 0 V) • Output current ±2 mA (@VCC = 1.2 V) ±4 mA (@VCC = 1.4 V to 1.6 V) ±6 mA (@VCC = 1.65 V to 1.95 V) ±18 mA (@VCC = 2.3 V to 2.7 V) ±24 mA (@VCC = 3.0 V to 3.6 V) • Ordering Information |
