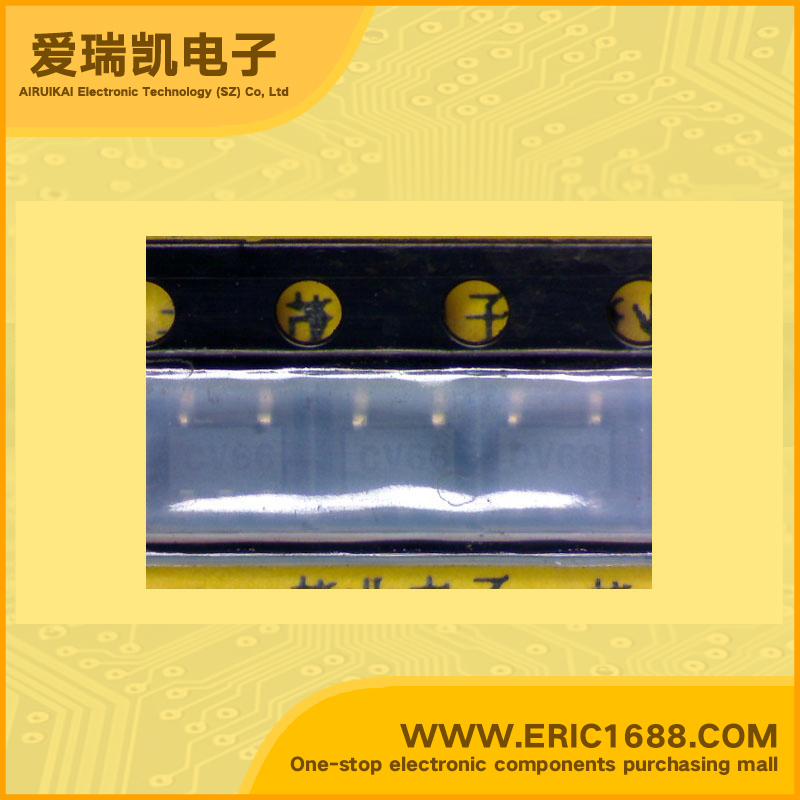

ILC7081AIM5-285 LDO Voltage Regulator 2.85V 150mV/0.15V With Enable Pin SOT-153/SOT23-5 marking CV66 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~13.5V
输出电压VOUT
Voltage - Output
2.85V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
150mV/0.15V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
200mW/0.2W
Description & Applications50/100mA SOT-23 CMOS RF LDO™ Regulators ;•Ultra low 1mV dropout per 1mA load •1% output voltage accuracy • Uses low ESR ceramic output capacitor to minimize noise and output ripple • Only 100µA ground current at 100mA load • Ripple rejection up to 85dB at 1kHz, 60dB at 1MHz • Less than 80µVRMS noise at BW = 100Hz to 100kHz • Excellent line and load transient response • Over current / over temperature protection • Guaranteed up to 80/150mA output current • Fixed 2.85V, 3.0V, 3.3V, 3.6V, 4.7V, 5.0V and adjustable output voltage options • Metal mask option available for custom voltages between 2.5 to 10V • Cellular phones • Wireless communicators • PDAs / palmtops / organizers • Battery powered portable electronics
描述与应用50/100mA SOT-23 RF CMOS LDO稳压器™;•超低1mV的压降每1mA负载 •1%的输出电压精度 •使用低ESR陶瓷输出电容,以减少噪声和输出纹波 •只有在100mA负载电流100μA地面 纹波抑制为85dB1kHz时为60dB1MHz的 •小于80μVRMS噪声BW=100Hz到100kHz •出色的线路和负载瞬态响应 •过电流/过温度保护 •保证到80/150mA输出电流 •固定2.85V,3.0V,3.3V,3.6V,4.7V,5.0V和可调输出电压选项 •金属掩膜选项可自定义的电压之间 2.5到10V •手机 •无线传播者 •如PDA /掌上电脑/组织者 •电池供电的便携式电子产品
