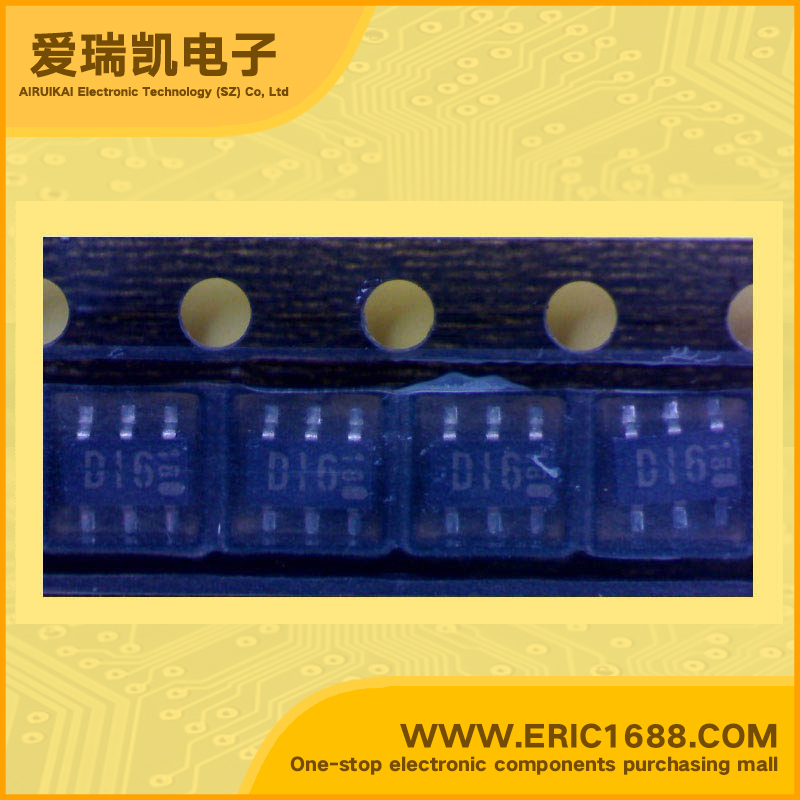

IMD16 NPN+PNP Complex Bipolar Digital Transistor -50V/50V -500mA/100mA 300mW/0.3W SOT-163/SMT6/SC-74 marking D16 switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V/50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V/50V |
| 集电极连续输出电流IC Collector Current(IC) | -500mA/100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 2.2KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 100KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 300mW/0.3W |
| Description & Applications | Features •Power management (dual digital transistors) •Two digital class transistors in a SMT package. •Up to 500mA can be driver. •Low VCE (sat) of driver transistors for low power dissipation |
| 描述与应用 | 特点 •电源管理（双数字晶体管） •两个数字在SMT包装类晶体管。 •高达500mA的驱动程序。 •低VCE（sat）的低功耗驱动器晶体管。 |
