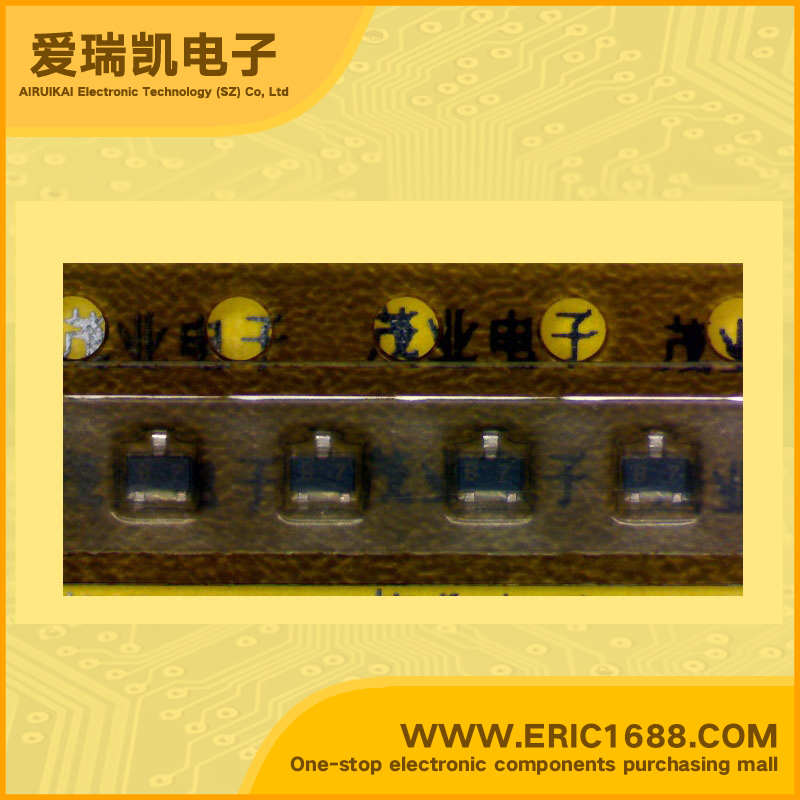

KN4F4M PNP Bipolar Digital Transistor (BRT) -60V -100mA/-0.1A 60~195 0.15W/150mW SOT-523/SC-75 marking B7 switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)22KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
电阻比(R1/R2) Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)60~195
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation0.15W/150mW
Description & ApplicationsFEATURES •SILICON TRANSISTOR •RESISTOR BUILT-IN TYPE PNP TRANSISTOR •Compact package •Resistors built-in type •Complementary to KA4xxx
描述与应用特点 •硅晶体管 •电阻器内置型PNP晶体管 •紧凑的封装 •内置式电阻器 •互补KA4xxx的
