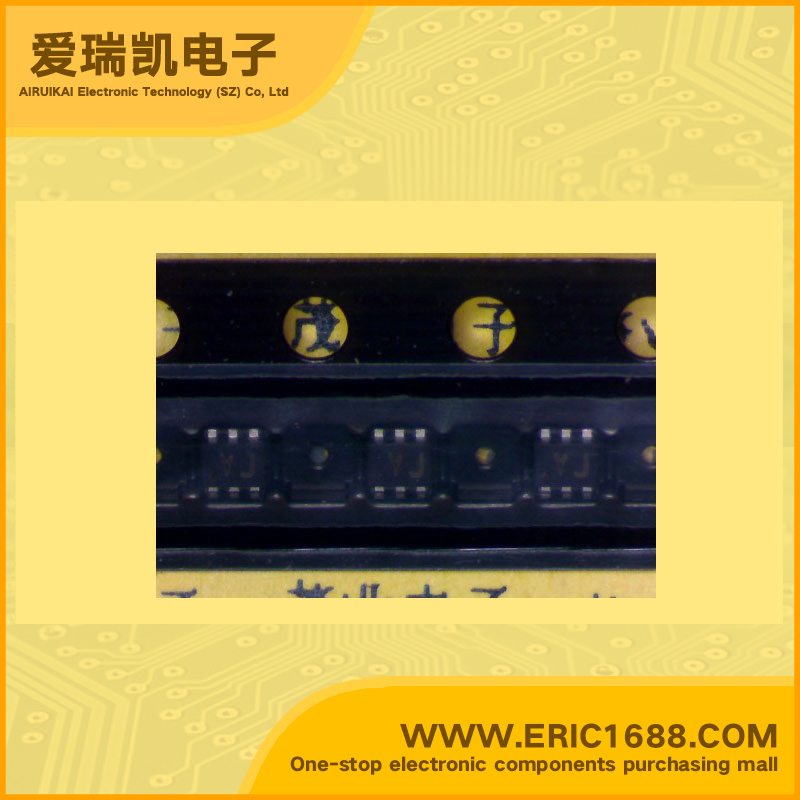

KRC829E NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 200mW/0.2W SOT-563/TES6 marking VJ switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage |
50V |
|
V(BR) CEO Collector-Emitter Voltage |
50V |
| Collector Current(IC) | 0.1A |
| Input Resistance(R1) | 47KΩ |
| Base-Emitter Resistance(R2) | 22kΩ |
| Base-Emitter Input Resistance Ratio (R1/R2) | 2.1 |
| DC Current Gain(hFE) | 70~140 |
| Transtion Frequency(fT) | 200MHZ |
| Power Dissipation （Pd） | 0.2W |
| Description & Applications | EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
FEATURES
With Built-in Bias Resistors.
Simplify Circuit Design.
Reduce a Quantity of Parts and Manufacturing Process.
High Packing Density.
|
