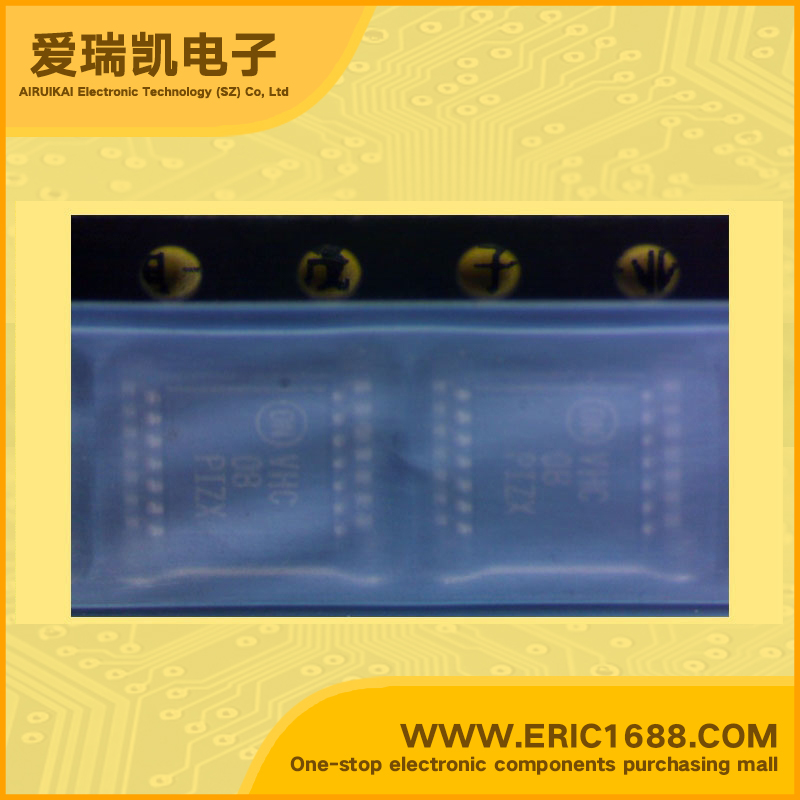

Integrated Circuit（IC） AND gate MC74VHC08DTR2 TSSOP14 marking VHC08
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 4 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V |
| 高逻辑电平 Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.8ns @ 5V，50pF |
| Description & Applications | Quad 2-input AND gate；Features High Speed: tPD = 4.3 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 2.0 uA (Max) @ TA = 25°C High Noise Immunity: VNIH = VNIL = 28% VCC Power Down Protection Provided on Inputs Balanced Propagation Delays Designed for 2.0 V to 5.5 V Operating Range Low Noise: VOLP = 0.8 V (Max) Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300 mA ESD Performance: Human Body Model > 2000 V; Machine Model > 200 V Chip Complexity: 24 FETs or 6 Equivalent Gates Pb−Free Packages are Available |
| 描述与应用 | 四路双输入与门；特性 高速：TPD =4.3 ns（典型值），VCC= 5.0 V 低功耗：ICC=2.0微安（最大值）@ TA= 25°C 高抗干扰：VNIH= VNIL=28％VCC 掉电保护的输入端 平衡传输延时 专为2.0 V到5.5 V工作范围 低噪声：VOLP= 0.8 V（最大值） 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300毫安 ESD性能： 人体模型>2000 V; 机型号> 200 V 芯片复杂度：24场效应管或6个等效门 提供无铅封装 |
