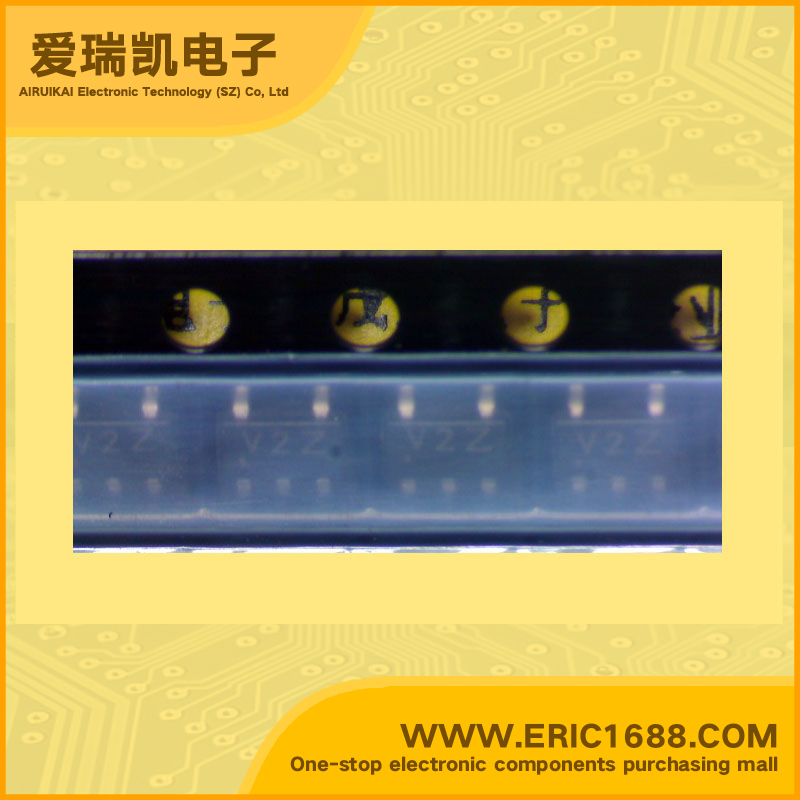

Integrated Circuit（IC） AND gate MC74VHC1G08DTT1 SOT-153/SOT23-5/TSOP5/SC59?5 marking V2
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.9ns @ 4.5V~5.5V，50pF |
| Description & Applications | Single 2-input AND gate；Features High Speed: tPD = 3.5 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 1.0 A (Max) at TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 62 |
| 描述与应用 | 单路双输入与门；特性 高速：TPD= VCC= 5.0 V3.5纳秒（典型值） 低功耗：ICC=1.0 A（最大）在TA = 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：晶体管数= 62 |
