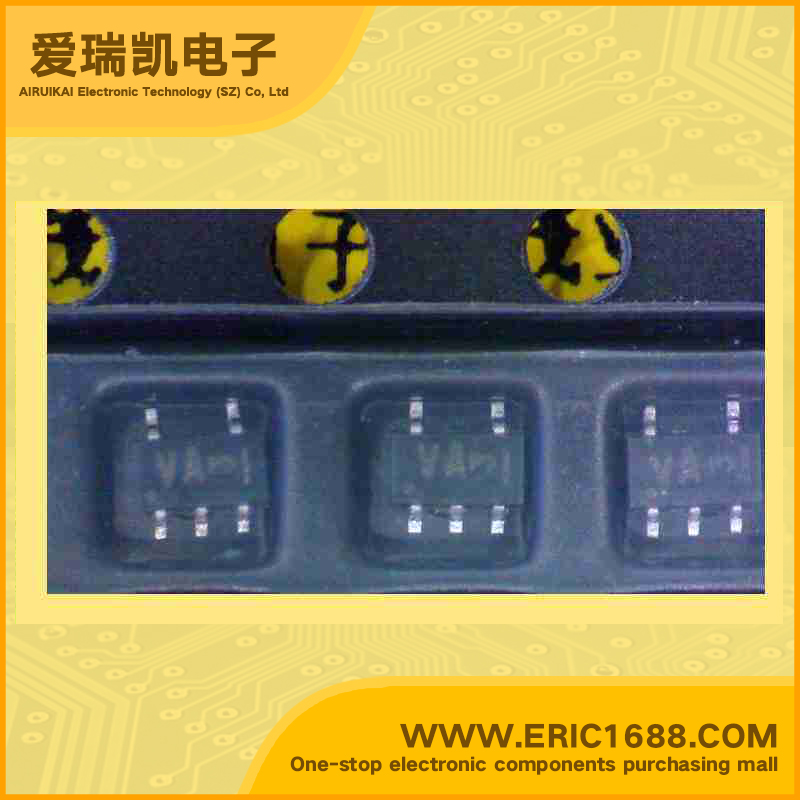

Integrated Circuit(IC) Inverting Schmitt trigger MC74VHC1G14DFT SOT-353/SC-88A/SC70-5 marking VA

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.9V~1.65V
高逻辑电平
Logic Level - High
2.2V~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
10.6ns @ 4.5V~5.5V,50pF
Description & ApplicationsSingle Schmitt−Trigger Inverter ;Features High Speed: tPD = 4.0ns (Typ) @VCC = 5V Low Power Dissipation: ICC = 2µA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300mA
描述与应用单路施密特触发 逆变器;特性 高速:TPD =4.0ns(典型值)@ VCC= 5V 低功耗:ICC=2μA(最大值)@ TA= 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300mA
