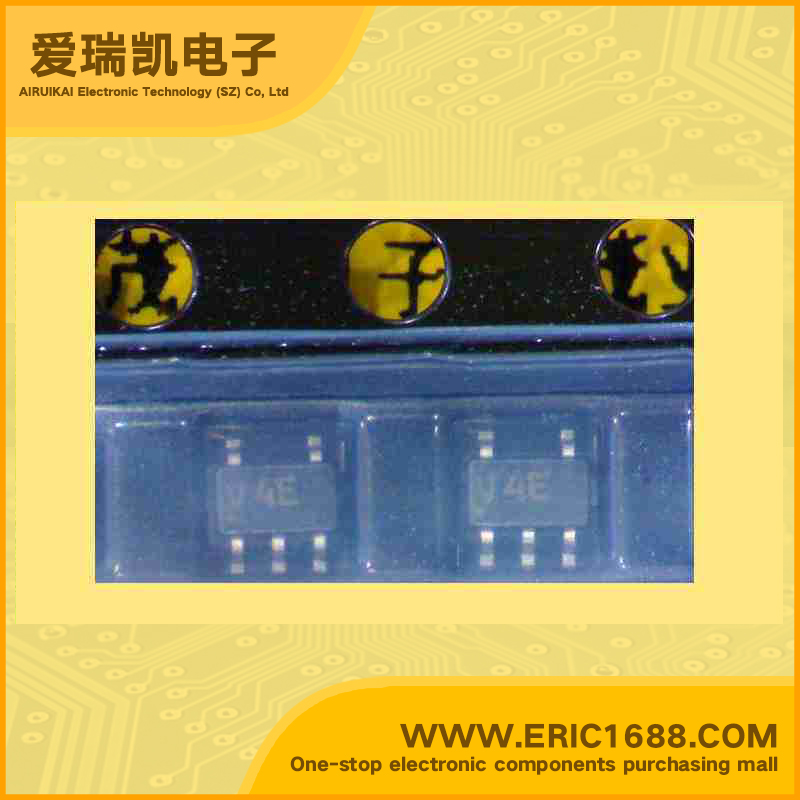

Integrated Circuit（IC） OR gate MC74VHC1G32DFT2 SOT-353/SC-88A/SC70-5 marking V4
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.4ns @ 4.5V~5.5V，50pF |
| Description & Applications | Single 2-input OR gate；Features High Speed: tPD = 3.7 ns (Typ) @VCC = 5 V Low Power Dissipation: ICC = 1uA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 60 Pb−Free Packages are Available |
| 描述与应用 | 单路双输入或门；特性 高速：TPD =3.7 ns（典型值）@ VCC=5 V 低功耗：ICC1uA的（最大）@ TA= 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：晶体管数= 60 提供无铅封装 |
