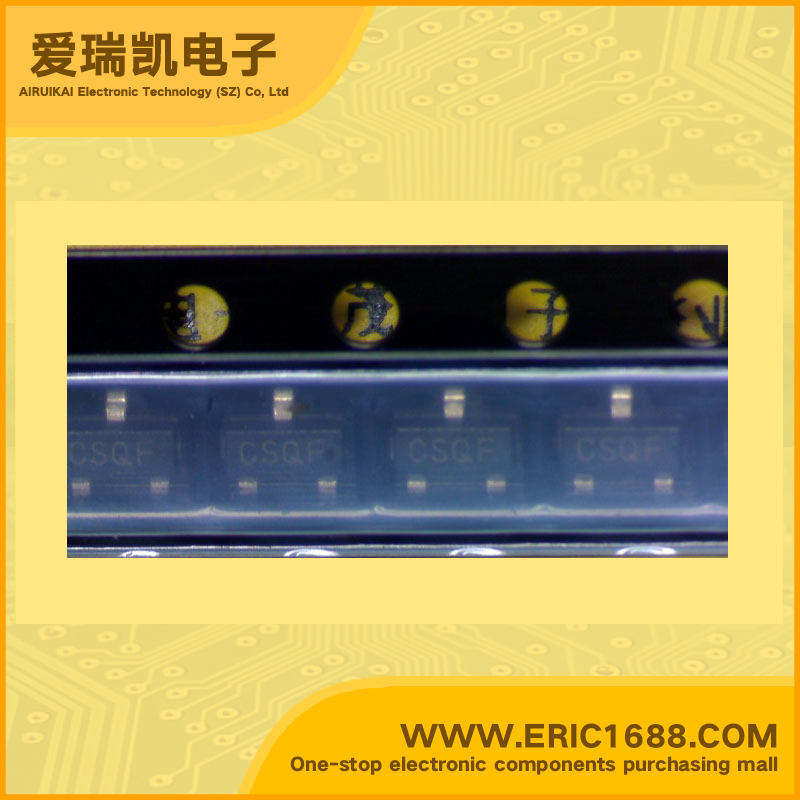

MCP1700T-3302E LDO Voltage Regulator 3.3V 178mV/0.178V SOT-23 marking CS Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.3~6V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 250mA/0.25A |
| 最大压降VDO Voltage - Dropout | 178mV/0.178V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Low Quiescent Current LDO ；•6 µA Typical Quiescent Current • Input Operating Voltage Range: 2.3V to 6.0V • Output Voltage Range: 1.2V to 5.0V • 250 mA Output Current for output voltages ≥ 2.5V • 200 mA Output Current for output voltages < 2.5V • Low Dropout (LDO) voltage - 178 mV typical @ 250 mA for VOUT = 2.8V • 0.4% Typical Output Voltage Tolerance • Stable with 1.0 µF Ceramic Output capacitor • Short-Circuit Protection • Overtemperature Protection |
| 描述与应用 | 低静态电流LDO;•6 UA典型的静态电流 •输入工作电压范围：2.3V至6.0V •输出电压范围：1.2V至5.0V •250 mA输出电流输出电压≥2.5V •200 mA输出电流输出电压<2.5V •低压差（LDO）稳压 - 为178 mV@ VOUT= 2.8V250 mA（典型） •0.4％的典型输出电压容差 •1.0 uF陶瓷输出电容稳定 •短路保护 •过温保护 |
