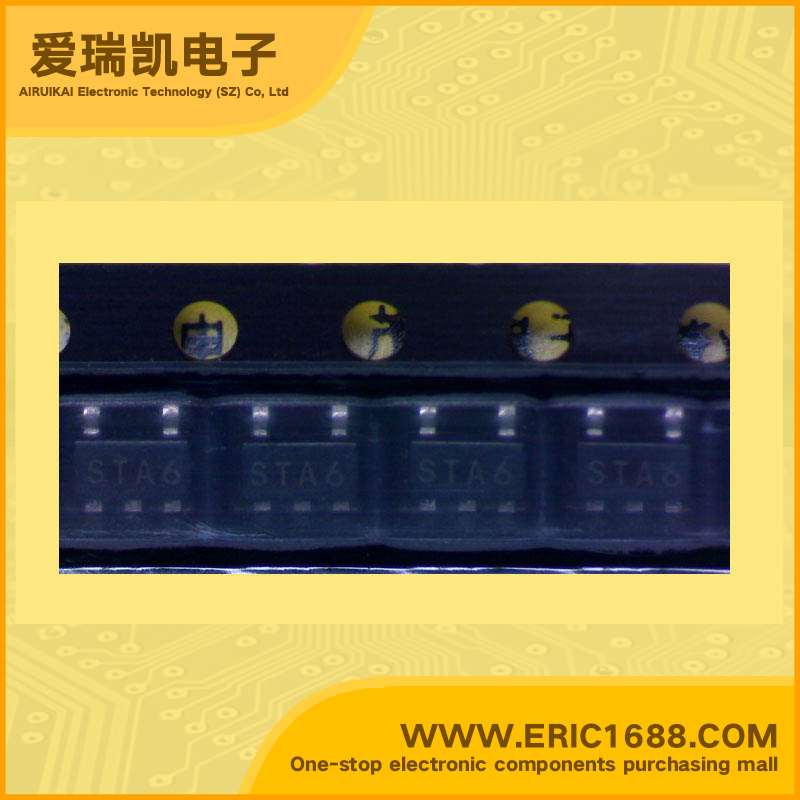

MM3023DNRE LDO Voltage Regulator 3.3V 300mV/0.3V SOT-153/SOT-25A/SOT23-5 marking ST Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~9V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
40mA
最大压降VDO
Voltage - Dropout
300mV/0.3V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
150mW/0.15W
Description & ApplicationsCMOS Regulator ;•Super low consumption current 2.5µA typ. (when not loaded, excluding the CE terminal current) • Super low consumption current (when off) 0.1µA typ. •High precision output voltage ±2% •Input/output voltage difference 0.3V typ. (Io=60mA MM3023A) • Good input stability 0.15%/V typ. •Built-in short-circuit restriction circuit 60mA typ. • Wide operating temperature range -30~+85°C • Output voltage 2.0~5.5V (0.1V step)
描述与应用CMOS稳压器;•超低电流消耗典型值2.5uA(不加载时,不包括CE终端电流) •超低的电流消耗(关闭时)0.1μA(典型值) •高输出电压精度±2% •输入/输出电压差0.3V(典型值)(IO=60毫安MM3023A) •良好的稳定性输入00:15%/ V(典型值) •内置短路限制电路60MA(典型值) •宽工作温度范围-30〜+85°C •输出电压2.0〜5.5V(0.1V步进)
