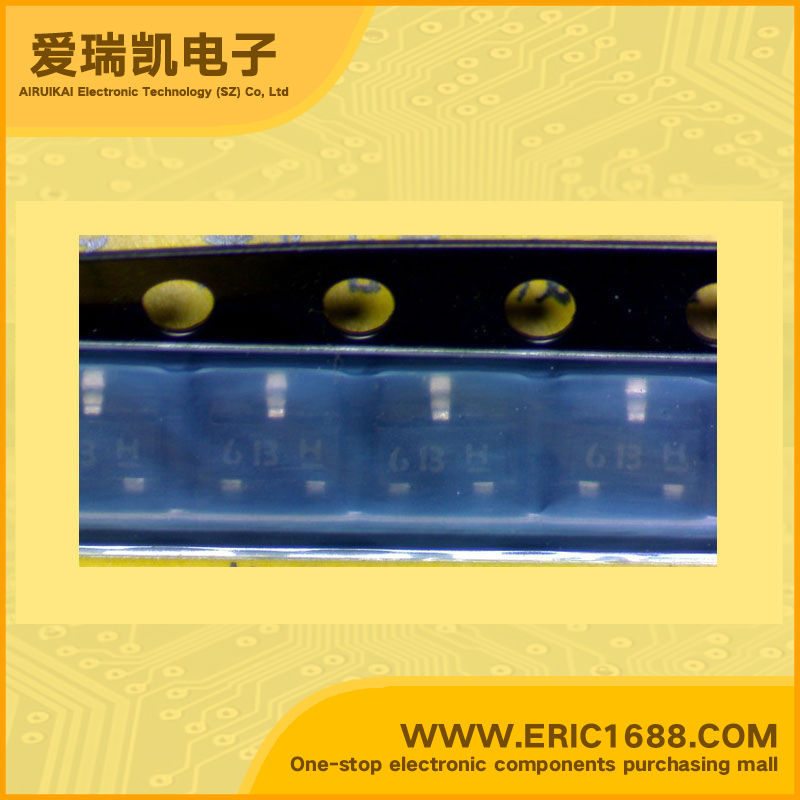

MUN2112T1 PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 100 0.338W/338mW SOT-23/SC-59 marking 6B switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 22KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 22KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 100 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.338W/338mW |
| Description & Applications | FEATURES •bias resistor transistors •PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network •Simplifies Circuit Design •Reduces Board Space •Reduces Component Count •Moisture Sensitivity Level: 1 •ESD Rating − Human Body Model: Class 1− Machine Model: Class B •The SC−59 Package Can be Soldered Using Wave or Reflow •The Modified Gull−Winged Leads Absorb Thermal Stress During Soldering Eliminating the Possibility of Damage to the Die •Pb−Free Packages are Available |
| 描述与应用 | 特点 •偏置电阻晶体管 •PNP硅表面贴装晶体管与单片偏置电阻网络 •简化电路设计 •缩小板级空间 •减少元件数量 •湿度敏感度等级：1 •ESD额定值 - 人体模型：第1类- 机器型号：B类 •SC-59包装可以焊接使用波或回流 •改进的鸥翼信息过程中吸收热应力消除焊接模具损坏的可能性 •无铅包可用 |
