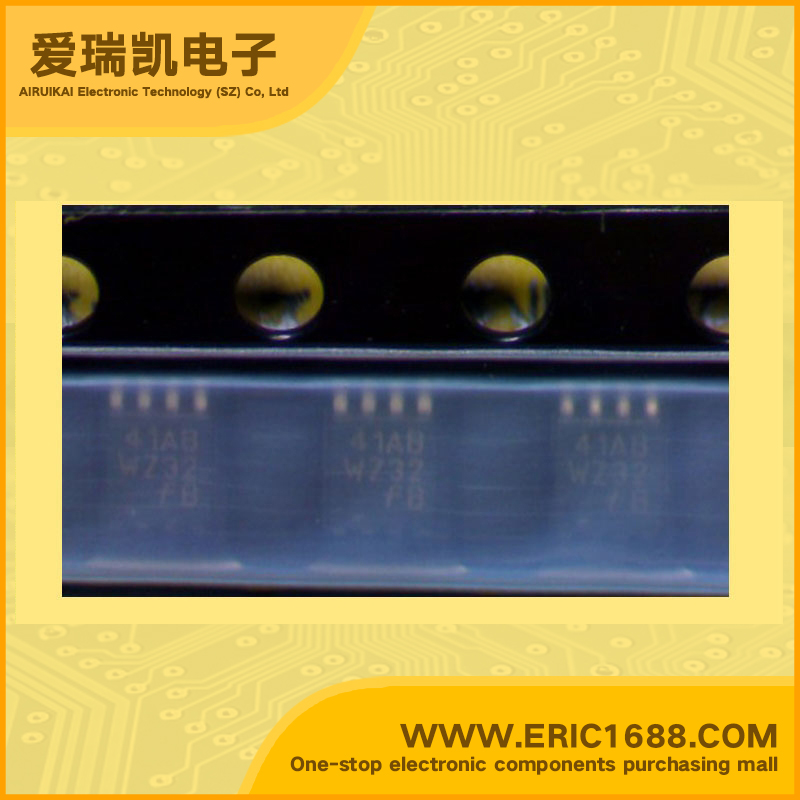

Integrated Circuit(IC) OR gate NC7WZ32K8X VFSOP8/US8 marking WZ32

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.1V~0.55V
高逻辑电平
Logic Level - High
1.55V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3.7ns @ 5V,50pF
Description & ApplicationsFeatures TinyLogic UHS Dual 2-Input OR Gate Space saving US8 surface mount package MicroPak Pb-Free leadless package Ultra high speed tPD 2.4 ns Typ into 50 pF at 5V VCC High output drive ±24 mA at 3V VCC Broad VCC operating range 1.65V to 5.5V Matches the performance of LCX when operated at 3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented
描述与应用特性 TinyLogicUHS双2输入或门 US8表面贴装封装节省空间 采用MicroPak无铅无铅封装 超高速TPD2.4 ns(典型值)为50 pF的5V VCC 高输出驱动±24 mA在3V VCC 宽广的VCC经营范围为1.65V至5.5V 操作时的性能相匹配的LCX在3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施
