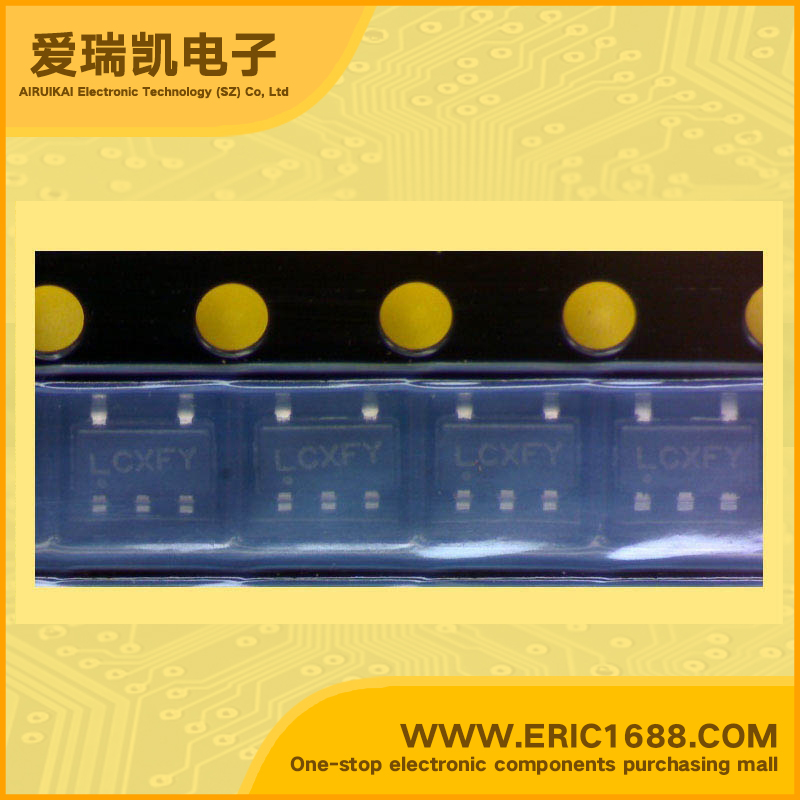

NCP500SN33T1 LDO Voltage Regulator 3.3V 270mV/0.27V SOT-153/TSOP-5/SOT23-5 marking LCXEL Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
6V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
270mV/0.27V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & Applications150 mA CMOS Low Noise Low-Dropout Voltage Regulator ;•Ultra−Low Dropout Voltage of 170 mV at 150 mA • Fast Enable Turn−On Time of 20 sec • Wide Operating Voltage Range of 1.8 V to 6.0 V • Excellent Line and Load Regulation • High Accuracy Output Voltage of 2.5% • Enable Can Be Driven Directly by 1.0 V Logic • Typical RMS Noise Voltage 50 V with No Bypass Capacitor (BW = 10 Hz to 100 kHz) • Very Small QFN 2x2 Package • Noise Sensitive Circuits − VCO’s, RF Stages, etc. • SMPS Post−Regulation • Hand−Held Instrumentation • Camcorders and Cameras
描述与应用150毫安的CMOS低噪声 低压差电压 稳压器;•在150 mA的超低压差电压为170 mV •快速启用开启时间20秒 •宽工作电压范围为1.8 V到6.0 V •出色的线路和负载调节 •高输出电压精度为2.5% •启用,可直接驱动1.0 V逻辑 •典型RMS噪声电压50 V的无旁路电容 (BW=10赫兹到100千赫) •非常小的QFN2x2封装 •噪声敏感的电路 - VCO的RF阶段​​,等等。 •SMPS后调控 •手持式仪表 •摄像机和照相机
