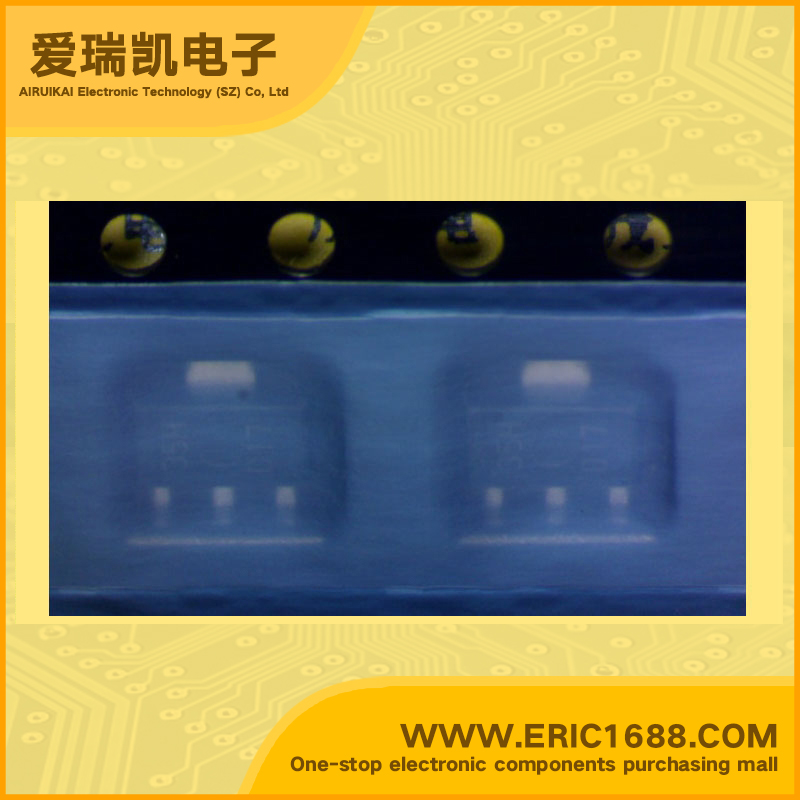

NJU7200U35 LDO Voltage Regulator 3.5V 60mV SOT-89 marking 35H Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
14V
输出电压VOUT
Voltage - Output
3.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
60mV
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
300mW/0.3W
Description & ApplicationsSUPER LOW OPERATING CURRENT C-MOS 3-TERMINAL VOLTAGE REGULATOR ;•Super Low Operating Current (0.9µA typ.@VOUT=1.0V) •Wide Range of Output Voltage Setting • Low Dropout Voltage (∆VIO < 0.18V, @VOUT=1.0V, IO = 0.5mA) • Small Temperature Coefficient of Output Voltage • Package Outline (TO-92/SOT-89) • C-MOS Technology
描述与应用超低工作电流 C-MOS3端稳压;•超低工作电流(0.9μA(典型值)@ VOUT= 1.0V) •宽范围的输出电压设定 •低压差(ΔVIO<0.18V@ VOUT= 1.0V,IO=0.5毫安) 输出电压的温度系数小 •封装(TO-92/SOT-89) •C-MOS技术
