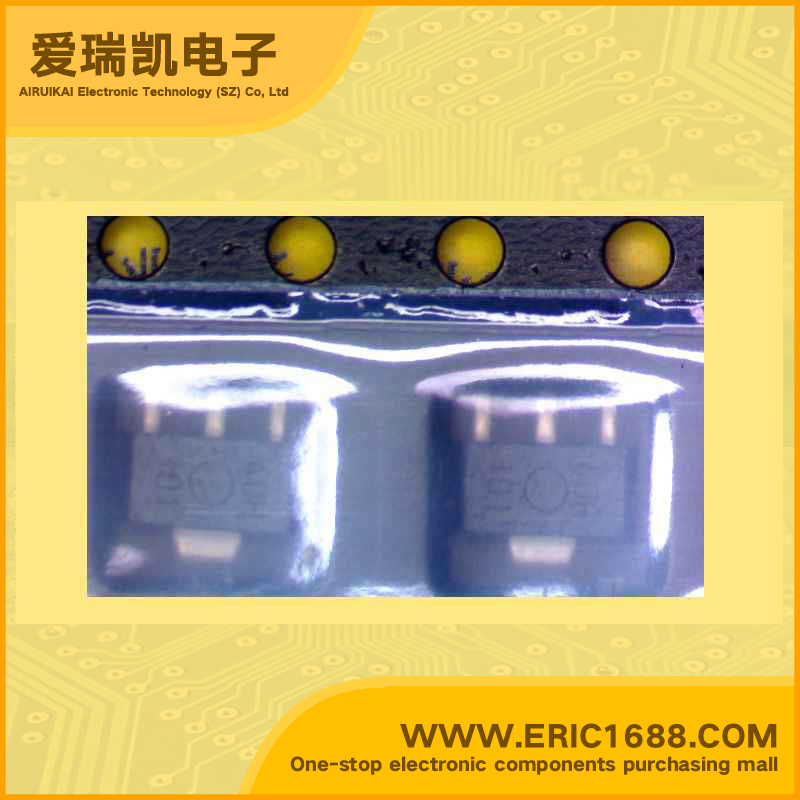

NJU7200U40-TE2 LDO Voltage Regulator 4V 60mV SOT-89 marking 40H Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 14V |
| 输出电压VOUT Voltage - Output | 4V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 60mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 300mW/0.3W |
| Description & Applications | SUPER LOW OPERATING CURRENT C-MOS 3-TERMINAL VOLTAGE REGULATOR ;•Super Low Operating Current (0.9µA typ.@VOUT=1.0V) •Wide Range of Output Voltage Setting • Low Dropout Voltage (∆VIO < 0.18V, @VOUT=1.0V, IO = 0.5mA) • Small Temperature Coefficient of Output Voltage • Package Outline (TO-92/SOT-89) • C-MOS Technology |
| 描述与应用 | 超低工作电流 C-MOS3端稳压;•超低工作电流（0.9μA（典型值）@ VOUT= 1.0V） •宽范围的输出电压设定 •低压差（ΔVIO<0.18V@ VOUT= 1.0V，IO=0.5毫安） 输出电压的温度系数小 •封装（TO-92/SOT-89） •C-MOS技术 |
