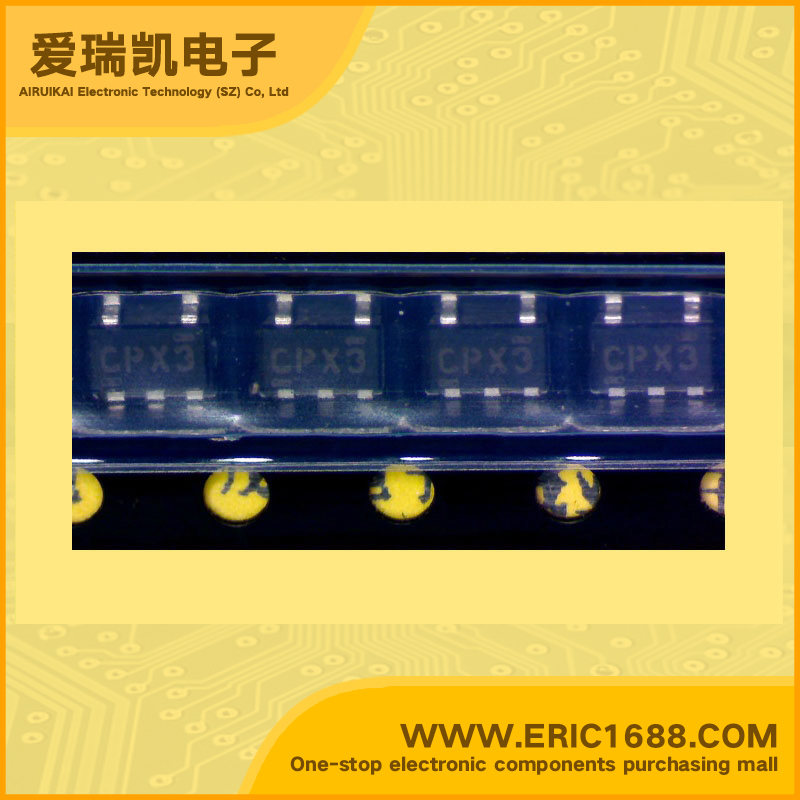

NJU7241F31 LDO Voltage Regulator 3.1V 200mV/0.2V SOT-153/MTP5/SOT23-5 marking CP Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
15V
输出电压VOUT
Voltage - Output
3.1V
输出电流Io
Current - Output
15mA
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
200mW/0.2W
Description & ApplicationsHigh-Precision LDO 60mA C-MOS Voltage Regulator with Standby ;• High Precision Output Voltage • Low Operating Current • Low Standby Current • Low Dropout Voltage • Ripple Rejection • Standby Function ±2% 20µA typ. 0.1µA typ. 0.2V typ. VOUT=3V 55dB typ. @1kHz • Small Temperature Coefficient of Output Voltage • Wide Operating Voltage Range
描述与应用高精密LDO60毫安的C-MOS电压稳压器,具有待机状态;•高精度输出电压 •低工作电流 •低待机电流 •低压差 •纹波抑制 •待机功能±2% 20μA(典型值)。 0.1μA(典型值)。 0.2V(典型值)。 VOUT= 3V 55分贝典型。 @1KHZ 输出电压的温度系数小 •宽工作电压范围
