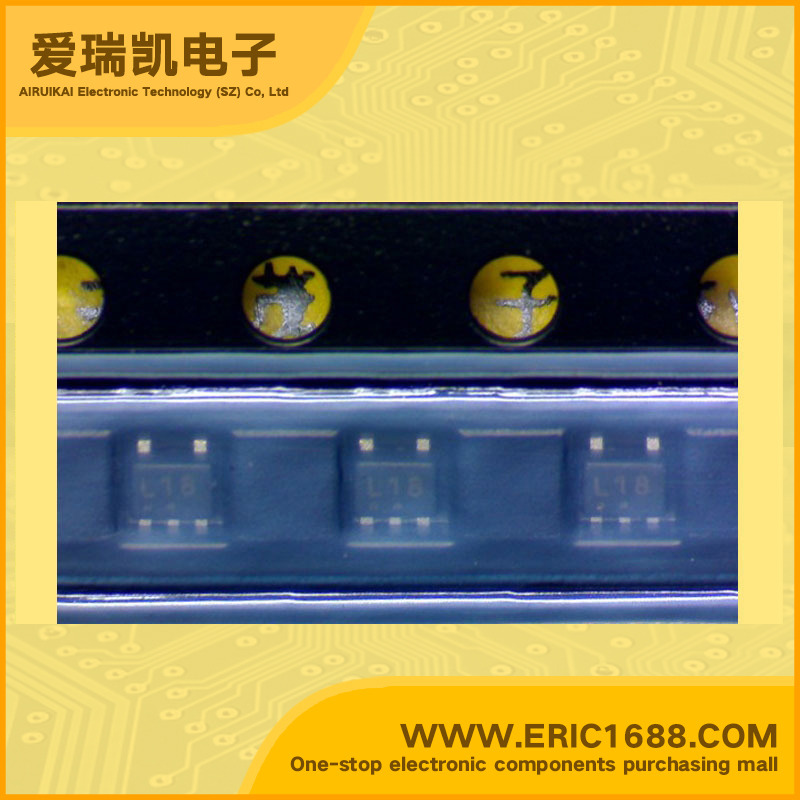

Integrated Circuit（IC） NAND gate NL17SZ00XV5T2 SOT-353/SC-88A/SC70-5 marking L1
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.3ns @ 5V，50pF |
| Description & Applications | Features Single 2-Input NAND Gate Tiny SOT- 353 and SOT-553 Packages 2.7 ns TPD at 5 V (typ) Source/Sink 24 mA at 3.0 V Over-Voltage Tolerant Inputs Pin For Pin with NC7SZ00P5X, TC7SZ00FU and TC7SZ00AFE Chip Complexity: FETs = 20 Designed for 1.65 V to 5.5 V VCC Operation |
| 描述与应用 | 特性 单路2输入与非门 微型SOT-353和SOT-553封装 2.7纳秒TPD在5 V（典型值） 源/汇24 mA在3.0 V 过电压容限输入 引脚对引脚NC7SZ00P5X TC7SZ00FU TC7SZ00AFE的 芯片的复杂性：FETs= 20 为1.65 V至5.5 V的VCC运行 |
