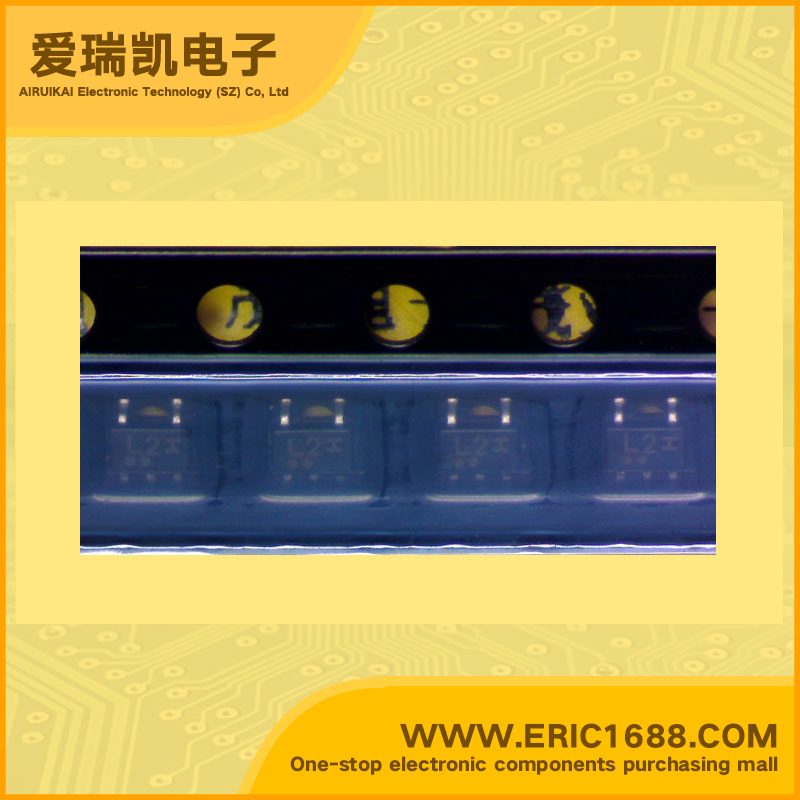

Integrated Circuit（IC） AND gate NL17SZ08DFT2G SOT-353/SC-88A/SC70-5 marking L2
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.29V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.5ns @ 5V，50pF |
| Description & Applications | Features Single 2−Input AND Gate Tiny SOT−353 and SOT−553 Packages 2.7 ns TPD at 5.0 V (typ) Source/Sink 24 mA at 3.0 V Over−Voltage Tolerant Inputs Pin For Pin with NC7SZ08P5X, TC7SZ08FU and TC7SZ08AFE Chip Complexity: FETs = 20 Designed for 1.65 V to 5.5 V VCC Operation Pb−Free Packages are Available |
| 描述与应用 | 特性 单路2输入与门 微型SOT-353和SOT-553封装 2.7 NS TPD在5.0 V（典型值） 源/汇24 mA在3.0 V 过电压容限输入 引脚对引脚NC7SZ08P5X TC7SZ08FU TC7SZ08AFE 芯片的复杂性：FETs= 20 为1.65 V至5.5 VVCC运行 无铅封装 |
