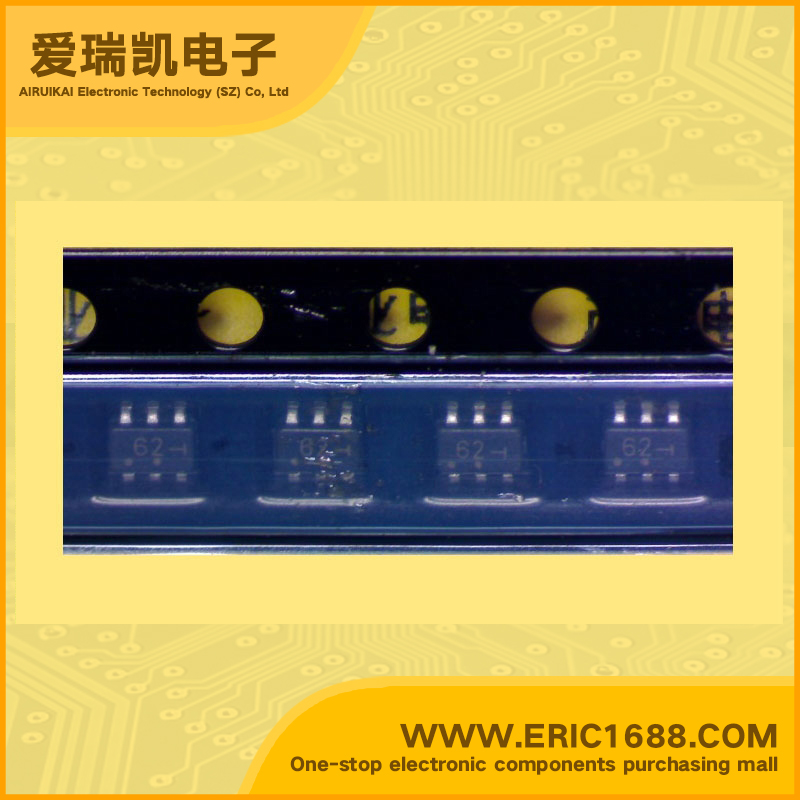

NUP2202W1T1G TVS/ESD 5.V 25A SOT-353/SC-88A marking 62
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5.V |
| 反向击穿电压VBR Breakdown Voltage | 6.0V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 500W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 25A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Low Capacitance SC−88 Diode−TVS Array for High Speed Data Lines Protection;Features • Low Capacitance (3 pF Maximum Between I/O Lines) • ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model • Protection for the Following IEC Standards: IEC 61000−4−2 (ESD) 15 kV (air) 8 kV (contact) IEC 61000−4−4 (EFT) 40 A (5/50 ns) IEC 61000−4−5 (lighting) 23 A (8/20 us) • UL Flammability Rating of 94 V−0 |
| 描述与应用 | 低电容SC-88 二极管TVS阵列高 高速数据线 保护;特性 •低电容（3 pF最大I / O线之间 •3B级（超过8 kVESD额定值每人体模型和C类（超过400 V每机模型 •保护下列IEC标准： IEC 61000-4-2（ESD15 kV（空气8 kV（接触 IEC61000-4-4（EFT），40（5/50纳秒 IEC61000-4-5（照明）23（8/20uS •UL94 V-0阻燃等级 |
