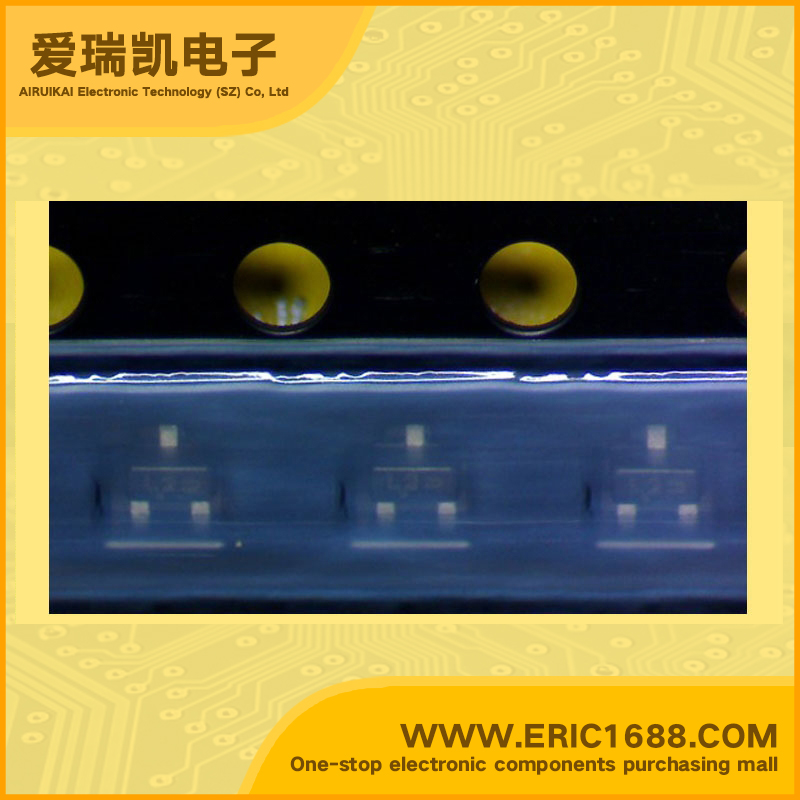

NZL6V8AXV3T1G TVS/ESD 4.5V 6.7A 0.24W/240mW SOT523-6.8V marking L2
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 4.5V |
| 反向击穿电压VBR Breakdown Voltage | 6.8V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 73W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 6.7A |
| 额定耗散功率Pd Power dissipation | 0.24W/240mW |
| Description & Applications | Specification Features • Dual Common Anode ESD Protection Diodes • SC−89 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration • ESD Rating of Class N (exceeding 16 kV) per the Human Body Model • Meets IEC61000−4−2 Level 4 • Low Leakage < 5.0 uA • These are Pb−Free Devices |
| 描述与应用 | 规格特性 •双共阳极ESD保护二极管 •SC-89封装可将瞬态电导向正极或地两个独立的单向配置或单双向配置 •ESD额定值N类（超过16千伏每人体模型 •符合IEC61000-4-2第4级 •低漏<5.0 uA •这些都是无铅设备 |
