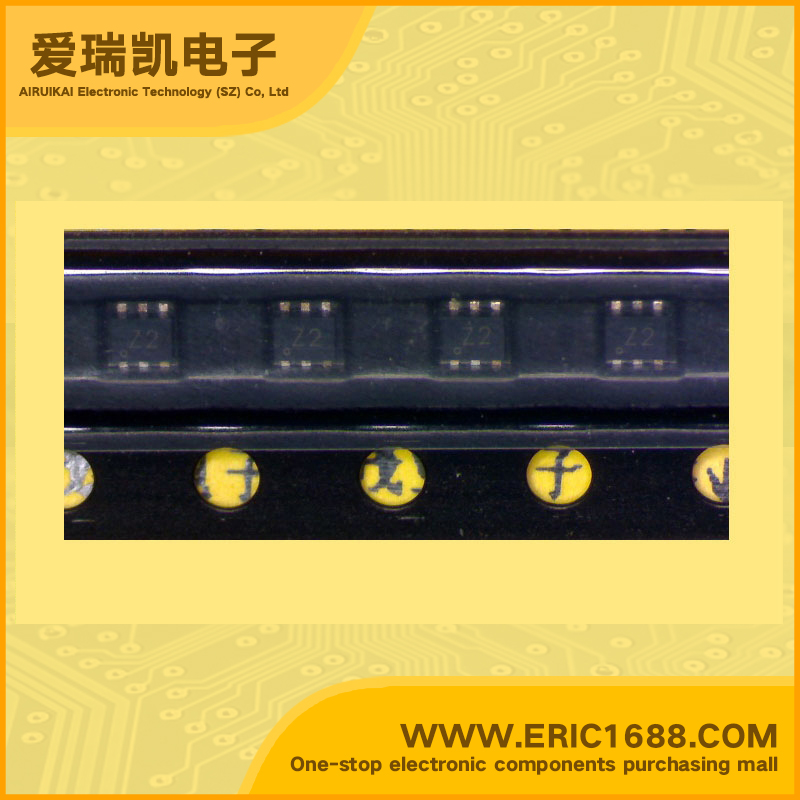

PEMH2 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA HEF=80 R1=R2=10KΩ 300mW/0.3W SOT-563/SOT666 marking Z2 switching inverting interface driver circuit
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
集电极连续输出电流IC Collector Current(IC) | 100mA |
Q1基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
Q2基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
直流电流增益hFE DC Current Gain(hFE) | 80 |
截止频率fT Transtion Frequency(fT) | |
耗散功率Pc Power Dissipation | 300mW/0.3W |
Description & Applications | Features • NPN resistor-equipped transistors; • 300 mW total power dissipation • Very small 1.6 × 1.2 mm ultra thin package • Self alignment during soldering due to straight leads • Replaces two SC-75/SC-89 packaged transistors on same PCB area • Reduces required PCB area • Reduced pick and place costs. APPLICATIONS • General purpose switching and amplification • Inverter and interface circuits • Circuit driver. |
描述与应用 | 特点 •NPN电阻配备晶体管; •300 mW的总功耗 •非常小的1.6×1.2毫米的超薄封装 •自对准直引线在焊接过程中,由于 •替换两个SC-75/SC-89封装晶体管 相同的PCB面积 •减少所需PCB面积 •减少取放成本。 应用 •通用开关和放大 •逆变器和接口电路 •电路驱动。 |
