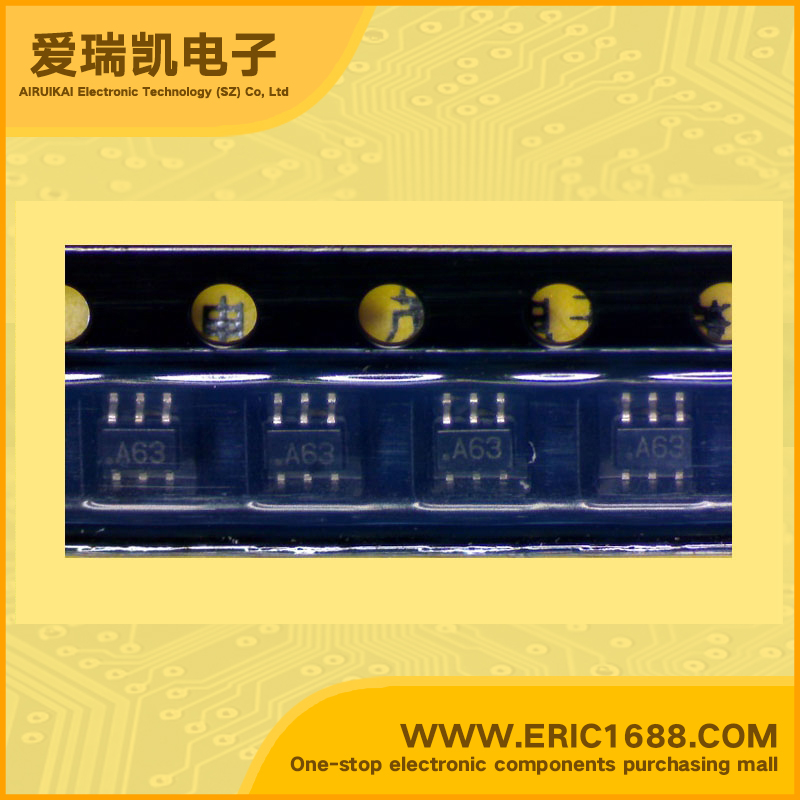

Integrated Circuit（IC） analog switch PI5A4599ACX SOT-363 marking A63
| 开关配置 Circuit | 单刀双掷 1*SPDT |
| 导通电阻 On-State Resistance | 10Ω/Ohm |
| 电源电压 Voltage - Supply | 2V~6V |
| Description & Applications | Low Resistance, Low-Voltage Single-Supply SPDT Switch Operating temperature range is 40°C to 85°C. Low On-Resistance: 10 ohms max. RON Matching: 2Ωmax. RON Flatness: 3.5Ωmax. 2V to 6V Single-Supply Operation 225MHz Channel Bandwidth at 1MHz 76dB Off-Isolation TTL/CMOS Logic Compatible Low Power Consumption: 5µW Applications： Communication Circuits Cellular Phones Audio and Video Signal Routing Portable Battery-Operated Equipment Data Acquisition Systems Computer Peripherals Telecommunications Relay Replacement Wireless Terminals and Peripherals |
| 描述与应用 | 低电阻，低电压单电源SPDT开关 工作温度范围为40°C 到85℃。 低导通电阻：10欧姆最大。 RON匹配：2Ωmax。 RON平坦度3.5Ωmax。 2V到6V单电源供电 225MHz的信道带宽 在1MHz的76分贝关断隔离 TTL/ CMOS逻辑兼容 低功耗：5μW 应用范围： 通信电路 蜂窝电话 音频和视频信号路由 便携式电池供电设备 数据采集系统 电脑周边 电信 更换继电器 无线终端和外围设备 |
