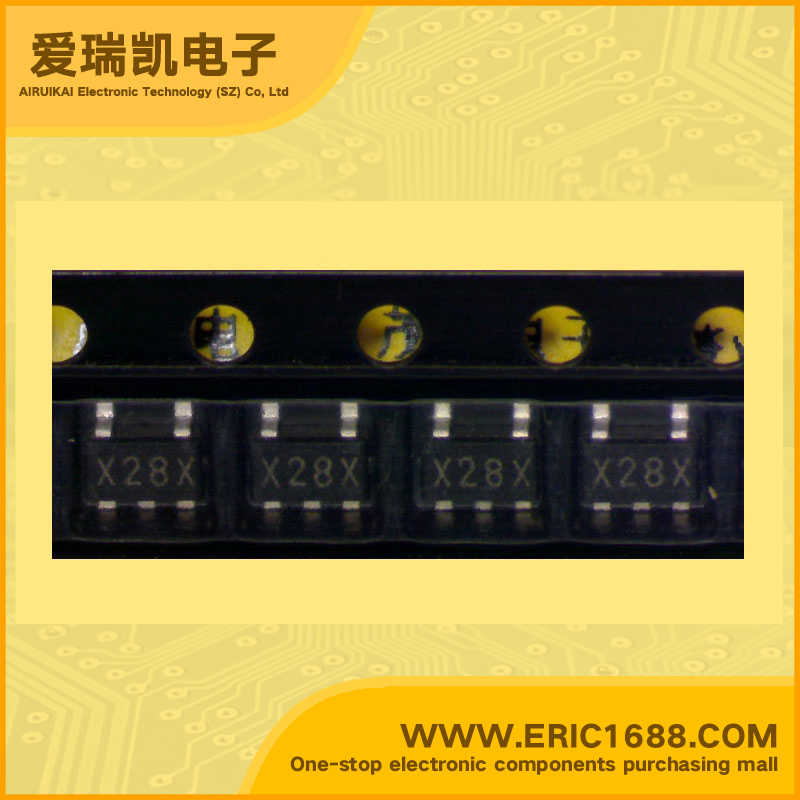

PQ1X281M2ZP LDO Voltage Regulator 2.8V 200mV/0.2V With Enable Pin SOT-153/SOT23-5 marking X28 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 9V |
| 输出电压VOUT Voltage - Output | 2.8V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 200mV/0.2V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 350mW/0.35W |
| Description & Applications | Low Output Current, Compact Surface Mount Type Low Power-Loss Voltage Regulators ;• Compact surface mount package (2.9×1.6×1.1mm) •Low power-loss (Dropout voltage: TYP. 0.11 V/MAX. 0.26V at IO=60mA) Also compatible ceramic capacitors because of suppressing oscillation level •High ripple rejection (TYP. 70dB) •Built-in ON/OFF control function (Dissipation current at OFF-state: MAX. 1μA) •Built-in overcurrent and overheat protection functions *It is available for every 0.1V of output voltage (1.3V to 5.0V) •RoHS directive compliant |
| 描述与应用 | 低输出电流，紧凑的表面贴装型低功率损耗电压调节器;•小型表面贴装封装（2.9×1.6×1.1毫米） •低功率损耗 （漏失电压：典型值0.11 V/最大0.26V IO=60毫安） 同时兼容陶瓷电容器，因为抑制 振荡水平 •高纹波抑制（典型值70分贝） •内置的ON / OFF控制功能 （在关断状态消耗电流：最大1μA） •内置过流和过热保护功能 *这是每一个0.1V的输出电压（1.3V至5.0V） •符合RoHS指令 |
