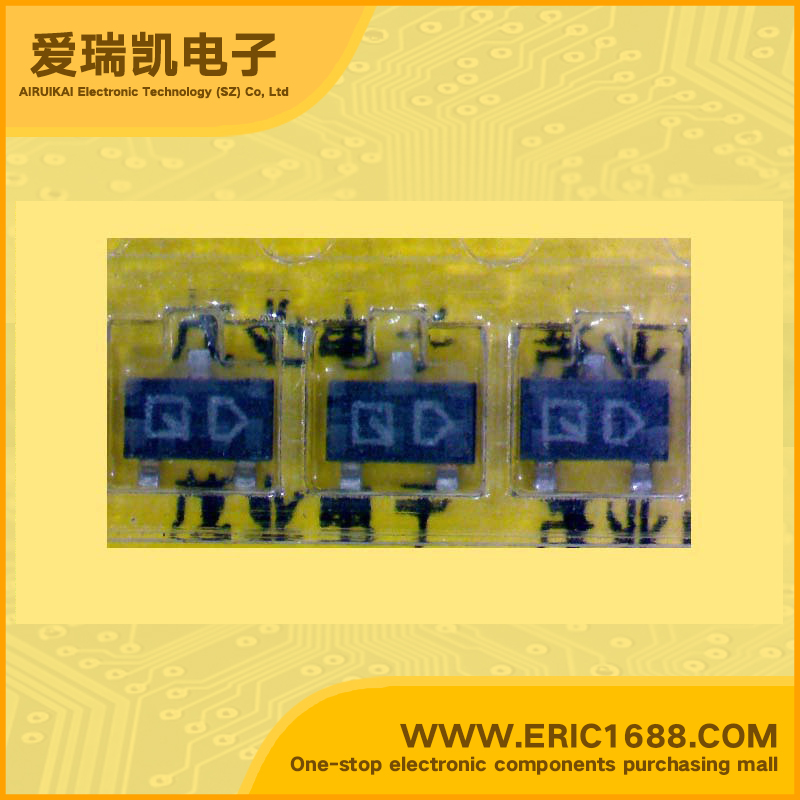

RN1424 NPN Bipolar Digital Transistor (BRT) 50V 800mA/0.8A 10k 10k SOT-23/SC-59/S-Mini marking QD switch inverting circuit interface circuit and driver circuit

Price (excluding freight):
Batches(PCS):
$0.043
≤99
$0.039
≤499
$0.032
≤999
$0.028
≤2999
$0.026
FCL

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)800mA/0.8A
基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
电阻比(R1/R2) Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)90
截止频率fT Transtion Frequency(fT)300MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsSwitching, Inverter Circuit, Interface Circuit and Driver Circuit Applications High current type (IC (max) = 800mA) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Low VCE (sat) Complementary to RN2421 to RN2427
描述与应用开关,逆变电路,接口电路 和驱动器电路应用 高电流型(IC(最大值)=800毫安) 借助内置的偏置电阻 简化电路设计 数量减少了零件和制造工艺 低的管压降 互补RN2421 RN2427
