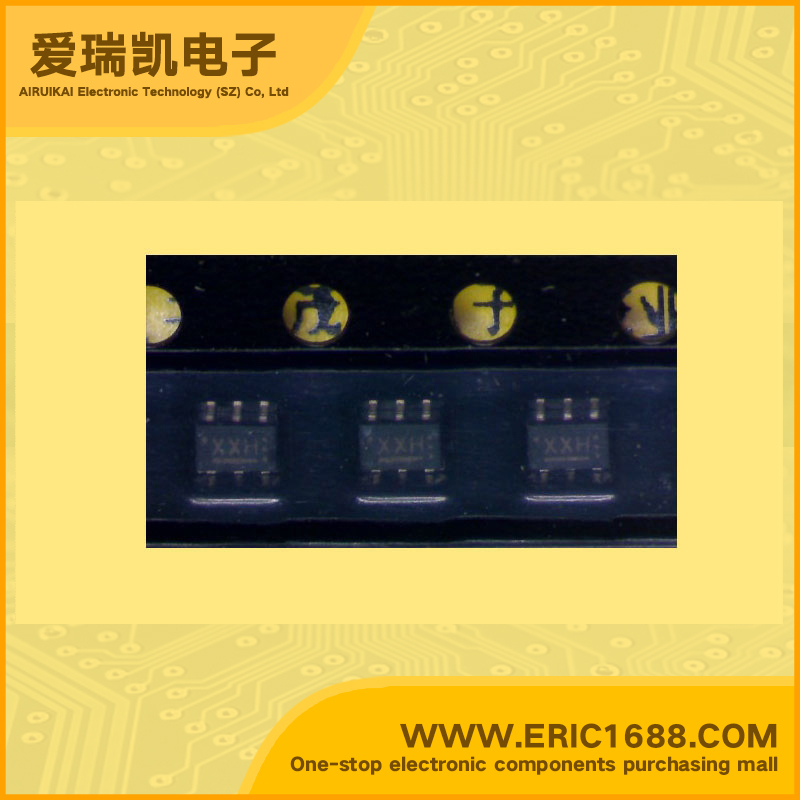

RN1967 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 80 200mW/0.2W SOT-363/US6/SC70-6 marking XXH switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 0.213 |
| Q2基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 0.213 |
| 直流电流增益hFE DC Current Gain(hFE) | 80 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | Features • TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) (Bias Resistor Built-in Transistor) • Including two devices in US6 (ultra super mini type with 6 leads) • With built-in bias resistors • Simplify circuit design • Reduce a quantity of parts and manufacturing process • Complementary to RN2967 to RN2969 APPLICATIONS • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 | 特点 •东芝晶体管的硅NPN外延式（PCT的进程）（偏置电阻内置晶体管） •包括两个设备US6（超超级迷你型6引线） •借助内置的偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 •互补RN2967~RN2969 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
