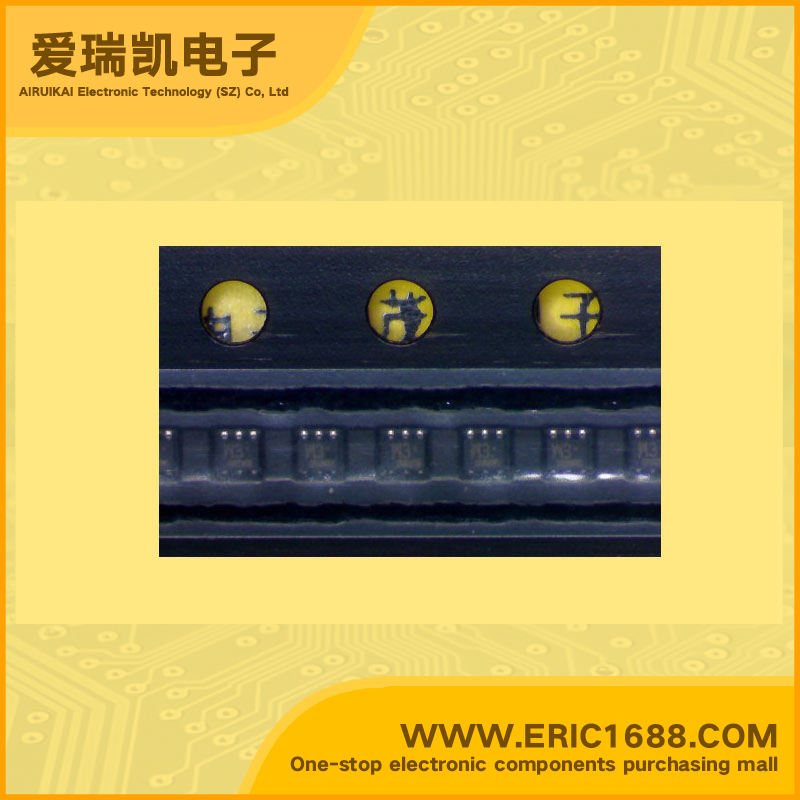

RN4984FS NPN+PNP Complex Bipolar Digital Transistor 20V/-20V 50mA/-50mA HEF=120 R1=R2=47KΩ 50mW SOT-963/FS6 marking 6D switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V/-20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 20V/-20V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA/-50mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 120 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 50mW |
| Description & Applications | Features • TOSHIBA Transistor Silicon NPN·PNP Epitaxial Type(PCT Process) (Bias Resistor Built-in Transistor) • Two devices are incorporated into a fine pitch small mold (6-pin) package. • Incorporating a bias resistor into a transistor reduces parts count.Reducing the parts count enables the manufacture of ever more compact equipment and lowers assembly cost. Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications. |
| 描述与应用 | 特点 •东芝晶体管的硅NPN·PNP外延型的（PCT进程）内置-在晶体管的（偏置电阻） •的有两台设备成一个罚款的俯仰小型模具（6 - 针）程序包注册成立。 •将偏置电阻晶体管，减少了部件数量。减少部件数量，能够制造更加紧凑的设备和降低装配成本。 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
