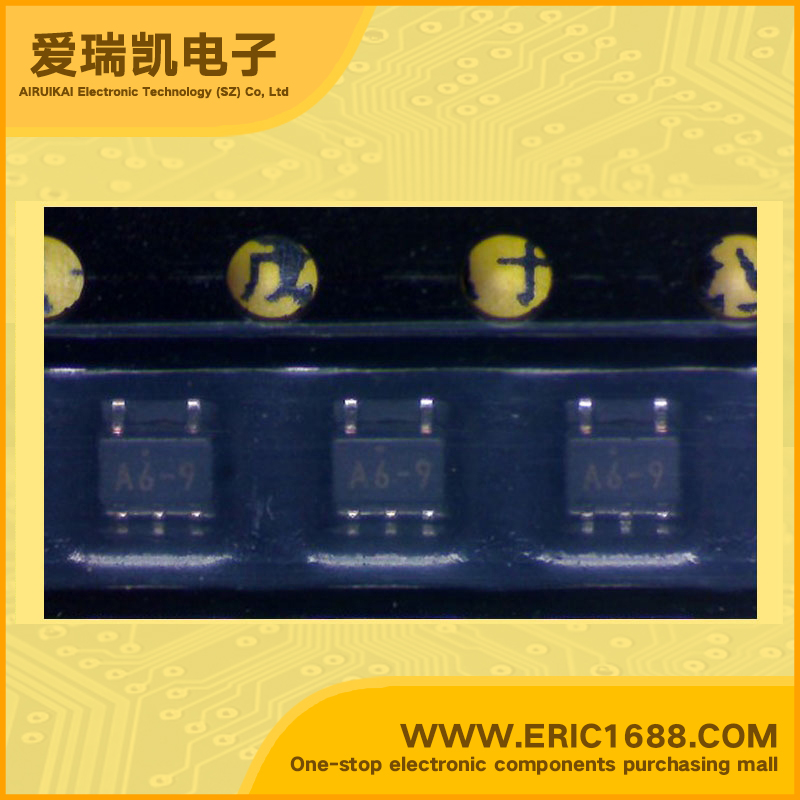

RT9198-25PU6 LDO Voltage Regulator 2.5V 220mV/0.22V With Enable Pin SOT-353/SC70-5 marking A6-9 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 220mV/0.22V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 300mA, Low Noise, Ultra-Fast CMOS LDO Regulator ;•Low-Noise for RF Application •Fast Response in Line/Load Transient •Quick Start-Up (Typically 50 s) •< 0.01 A Standby Current When Shutdown •Low Dropout : 220mV @ 300mA •Wide Operating Voltage Ranges : 2.5V to 5.5V •TTL-Logic-Controlled Shutdown Input •Low Temperature Coefficient •Current Limiting Protection •Thermal Shutdown Protection •Only 1 F Output Capacitor Required for Stability •High Power Supply Rejection Ratio •Custom Voltage Available •RoHS Compliant and 100% Lead (Pb)-Free |
| 描述与应用 | 300mA，低噪音，超高速CMOS LDO稳压器;•低噪声射频应用 •线路/负载瞬态响应速度快 •快速启动（通常为50秒） •<0.01待机电流关机时 •低压差：220MV300毫安“ •宽工作电压范围：2.5V至5.5V •TTL逻辑控制关断输入 •低温度系数 •电流限制保护 •热关断保护 •只有1 F输出电容器的稳定性要求 •高电源抑制比 •定制电压可用 •符合RoHS标准，100％无铅（pb）产品 |
