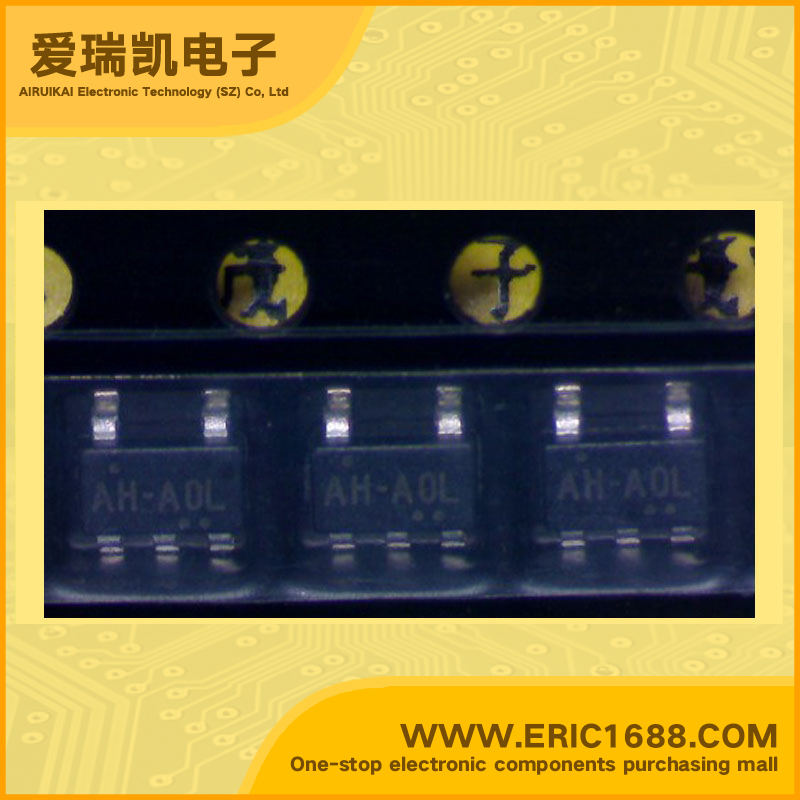

RT9701PBL Power Distribution Switch SOT-153/SOT23-5 marking AH High-Side NMOSFET
| 类型 Type | 高端开关 high-side |
| 输出数 Number of Outputs | 2 |
| Rds (On) | 105mΩ@5V |
| 内部开关 Internal Switch(s) | 有 YES |
| 电流限制 Current Limit | 1.1A~2A |
| 电压 - 输入 Voltage - Input | 2.2~6V |
| Description & Applications | •100mΩ Power Distribution Switches •100mΩ Typ. High-Side NMOSFET (SOT- 25) •Guaranteed 1.1A Continuous Current •1.5A Current Limit •Small SOT- 25 Package Minimizes Board Space •Soft Start •Thermal Protection •Low 23μA Supply Current •Wide Input Voltage Range: 2.2V ~ 6V |
| 描述与应用 | •100MΩ配电开关 •100mΩ的典型。高侧NMOS管（SOT-25） •保证1.1A连续电流 •1.5A电流限制 •小型SOT-25封装减少电路板空间 •软启动 •热保护 •低电源电流23μA •宽输入电压范围：2.2V〜6V |
