SCH1411 Complex FET 30V 2A SOT-563/SCH6 marking KL high-speed switch 4V drive

Model：SCH1411

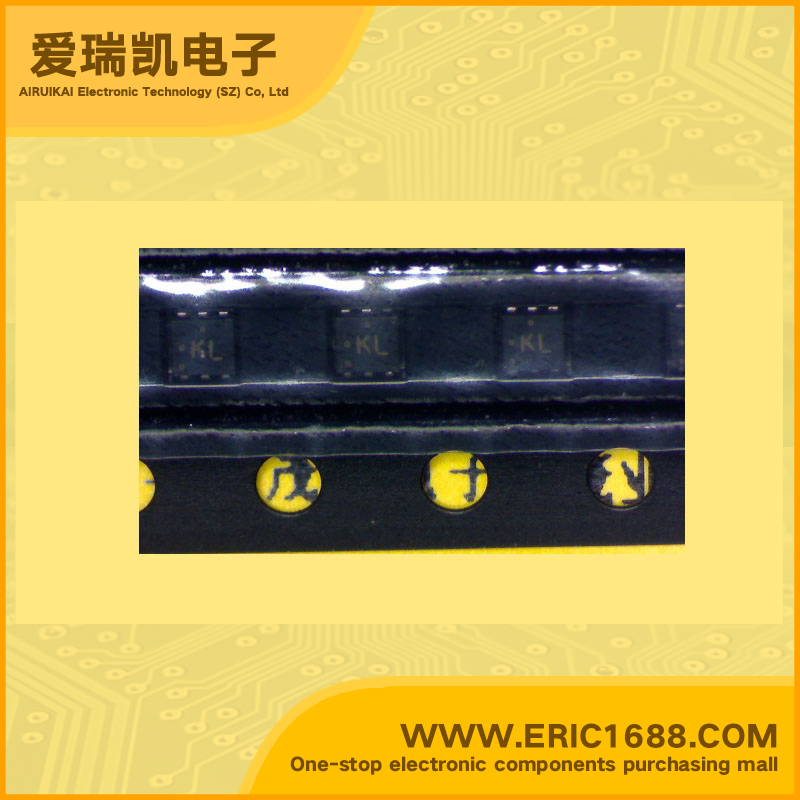

Mark / screen / code / typing：KL
Manufacturer：
Date Code：06NOPB 06+ROHS
Package：SOT-563/SCH6
Standard Package：5000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	30V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	2A
源漏极导通电阻Rds Drain-Source On-State Resistance	285mΩ@ VGS =4V, ID =0.5A
开启电压Vgs（th） Gate-Source Threshold Voltage	1.2~2.6V
耗散功率Pd Power Dissipation	800mW/0.8W
Description & Applications	General-Purpose Switching Device Applications Features • Low ON-resistance. • High-speed switching. • 4V drive.
描述与应用	通用开关设备应用特点 •低导通电阻。 •高速开关。 •4V驱动器。
