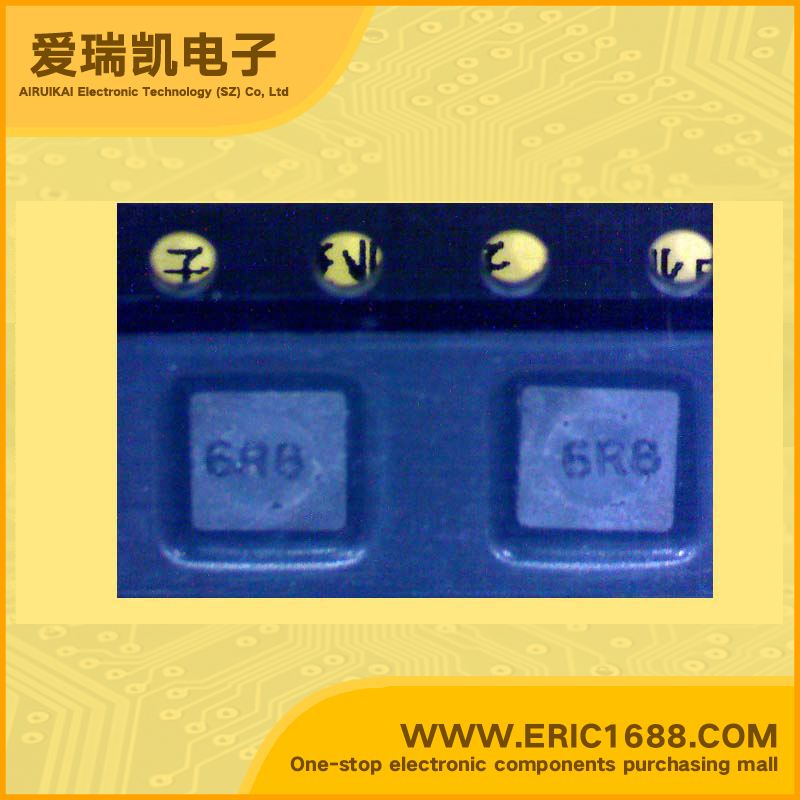

power conductor SH30186R8YSB 6.8uH 4M-6R8
Q值 Q Value | |
电感值 Inductance | 6.8uH |
误差 Tolerance | ±30% |
额定电流 Current Rating | 850mA |
饱和电流 Current - Saturation | 750mA |
DC电阻DCR DC Resistance (DCR) | 0.156Ω/Ohm |
Description & Applications | MATERIALS: a﹒Core :FerriteDR core b﹒Core:Ferrite RI core c﹒Wire :Enamelled copper wire ( Class F & H) d﹒Adhesive :Epoxy resin e﹒Terminal:Ag/Ni/Sn f﹒Remark:Products comply with RoHS' requirements GENERAL SPECIFICATION: c﹒Operating temp.:-25℃----+105℃ b﹒Storage temp.:-40℃----+125℃ a﹒Temp. rise :30℃max. d﹒Resistance to solder heat:260℃.10 secs. |
描述与应用 | 材料: a.Core:FerriteDR核心 b.Core:铁氧体RI核心 c.Wire:漆包铜线(F级&H) d.Adhesive:环氧树脂 e.Terminal:银/镍/锡 f.Remark:产品符合RoHS指令的要求 一般规格: c.Operating温度:-25℃ - +105℃ b.Storage温度:-40℃ - +125℃ a.Temp。上升:30℃最大。 d.Resistance焊热:260℃.10秒。 |
