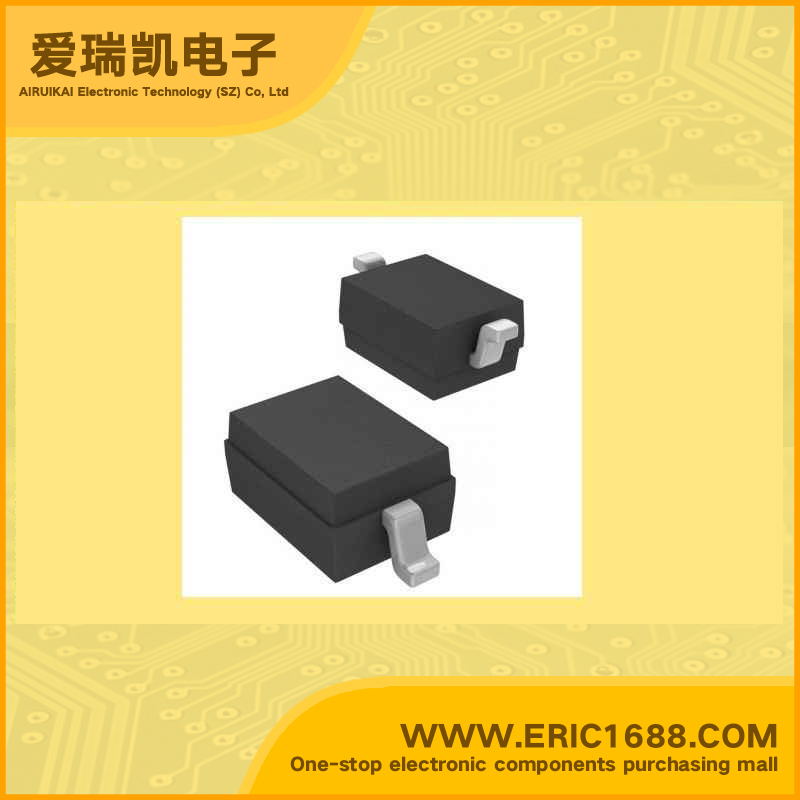

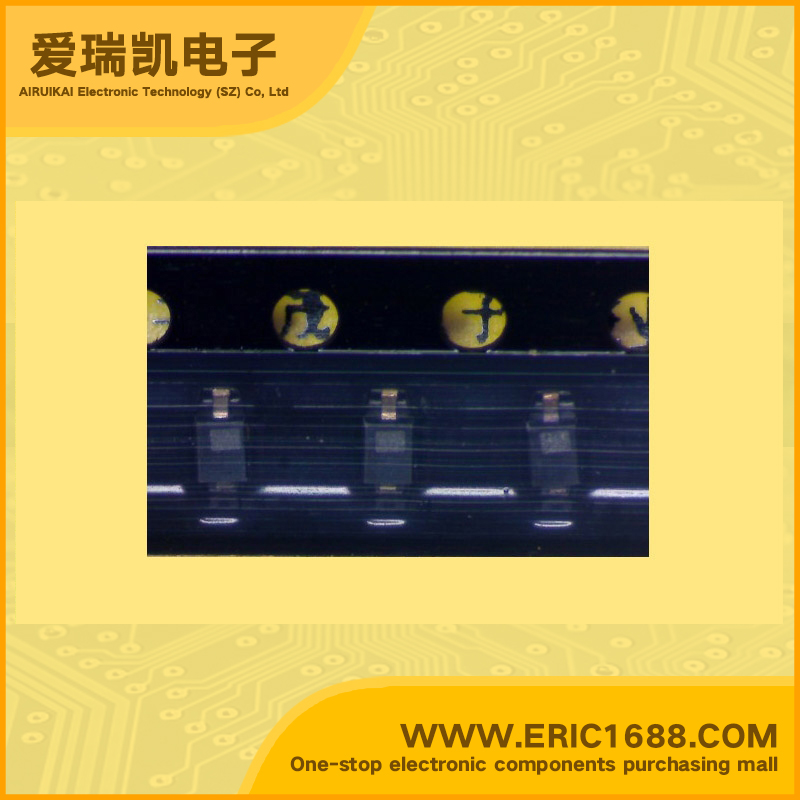

SMV1233-011 Variable Capacitance Diodes (Varicaps, Varactors) 15V 3.00pF-3.60pF 1.5-1.9 SOD-323/SC-76/0805 marking low tuning voltage operating/Low Series Resistance/high Q value
| 反向电压VR Reverse Voltage | 15V |
| 电容值C Diode capacitance | 3.00pF-3.60pF |
| @反向电压VR @Reverse Voltage | 1V |
| 电容值C Diode capacitance | 1.8pF |
| @反向电压VR @Reverse Voltage | 3V |
| 电容比 Capacitance ratio | 1.5-1.9 |
| Description & Applications | Hyperabrupt Tuning Varactors Description The SMV1232–SMV1237 series of silicon hyperabruptjunction varactor diodes are designed for use in VCOs with low tuning voltage operation. The low resistance of these varactors makes them appropriate for high Q resonators in wireless system VCOs to frequencies beyond 2.5 GHz. The SMV1232–SMV1237 series is fully characterized for capacitance and resistance over temperature.SPICE model is provided. High Capacitance Ratio, C1V/C3V = 1.8, C1V/C6V = 3.1 Low Series Resistance for Low Phase Noise Multiple Packages SOT-23, SOD-323, SC-70 and SC-79 Designed for High Volume Commercial Full Characterization with SPICE Models |
| 描述与应用 | 超突变调谐变容二极管 描述 的硅SMV1232 SMV1237一系列的超突变结变容二极管被设计用于在VCO中与 低调谐电压操作。这些低电阻变容二极管，使他们适合高Q值谐振器 在超过2.5 GHz的VCO频率的无线系统。MV1232 SMV1237系列是完全的特点 电容和电阻超过temperature.SPICE模型 高容量比C1V/C3V =1.8，C1V/C6V =3.1 低串联电阻 相位噪声 多重的程序封装SOT-23，SOD-323，SC-70和SC-79 SPICE模型的的完整表征 |
