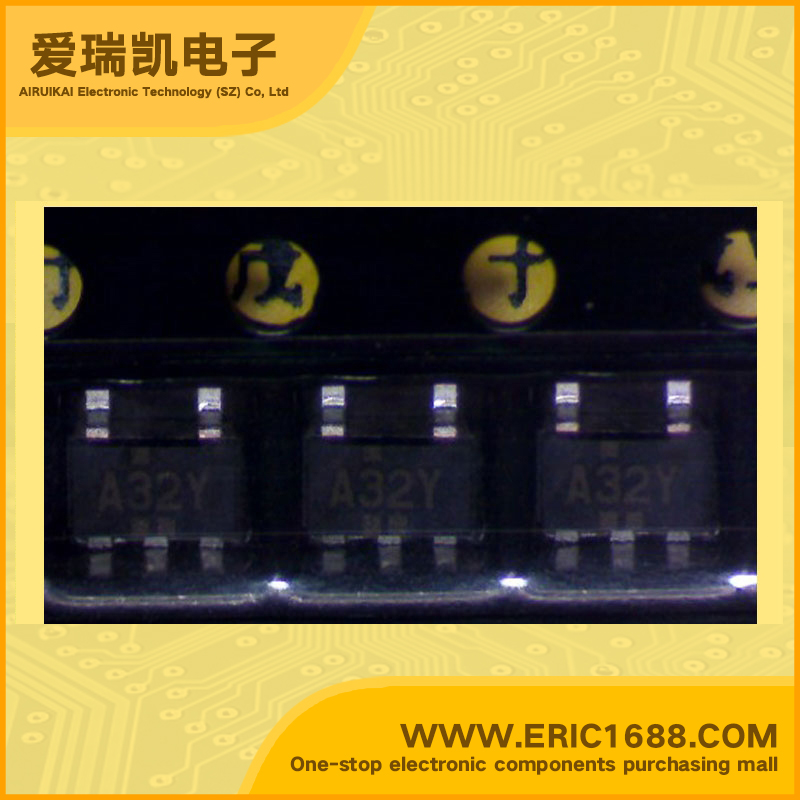

Integrated Circuit（IC） OR gate SN74AHC1G32DBV3 SOT-153/SOT23-5/SC-74A marking A32
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.3ns @ 5V，50pF |
| Description & Applications | SINGLE 2-INPUT POSITIVE-OR GATE ； Operating Range of 2 V to 5.5 V Max tpd of 6.5 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time Latch-Up Performance Exceeds 250 mA Per JESD 17 |
| 描述与应用 | 单2输入正或门;2 V至5.5 V的工作范围 最大5 V时为6.5 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V 施密特触发器动作在所有输入使 电路容错输入较慢的上升和下降时间 闭锁性能超过250 mA每 JESD17 |
