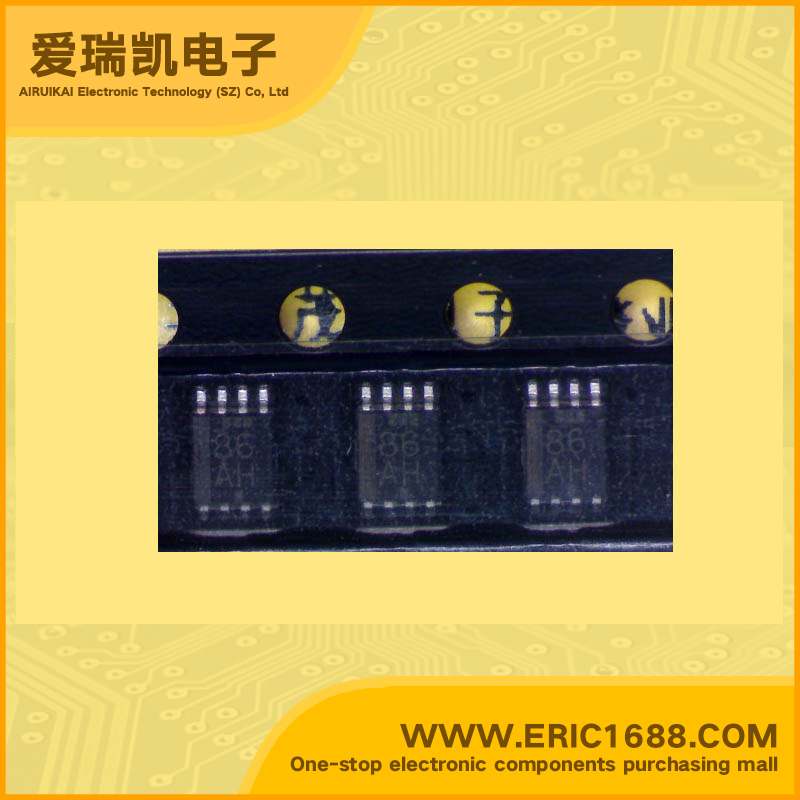

Integrated Circuit（IC） XOR gate SN74AHC2G86HDCU3 VFSOP8/US8 marking 86AH
| 逻辑类型 Logic Type | 异或门 XOR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | |
| 低逻辑电平 Logic Level - Low | 0.5v~1.65v |
| 高逻辑电平 Logic Level - High | 1.5v~3.85v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.1ns @ 5V，50pF |
| Description & Applications | DUAL 2-INPUT exclusive-OR GATE ;Operating Range 2-V to 5.5-V VCC DCT PACKAGE Switching Speed Typ4.4ns(@ VCC=3.0V, (TOP VIEW)CL=15pF) All inputs VIH(Max)=5.5V (@Vcc=0 to 5.5V) Low power Dissipation Icc(Max) 1uA(@ Ta=25 ) 8pin DCT Package (2.95X 2.80 X 1.1mm) |
| 描述与应用 | 双路2输入异或门;Operating Range 2-V to 5.5-V VCC DCT PACKAGE Switching Speed Typ4.4ns(@ VCC=3.0V, (TOP VIEW)CL=15pF) All inputs VIH(Max)=5.5V (@Vcc=0 to 5.5V) Low power Dissipation Icc(Max) 1uA(@ T a =25 ) 8pin DCT Package (2.95X 2.80 X 1.1mm) |
