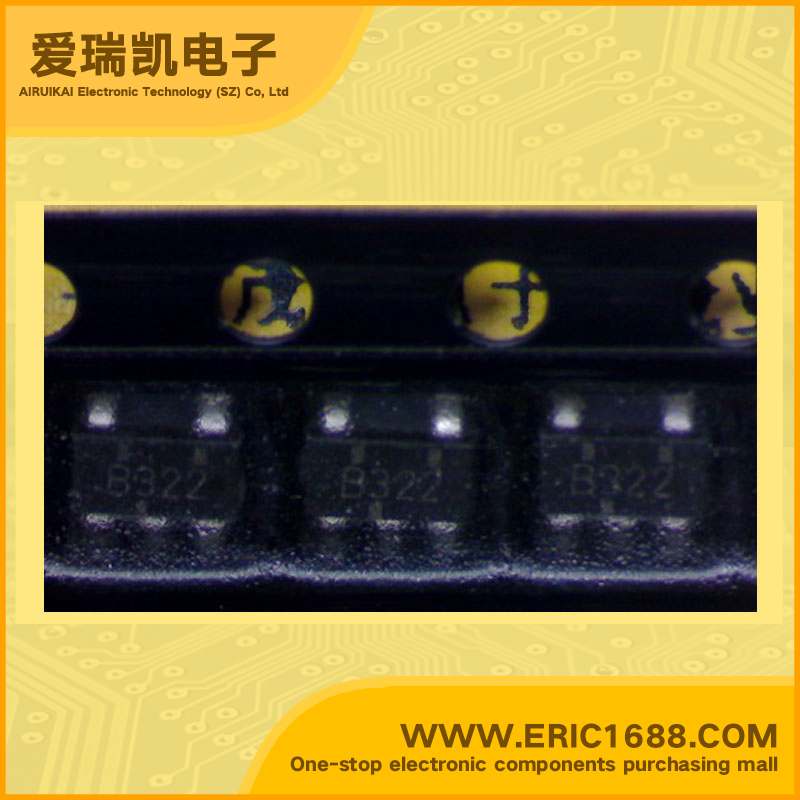

Integrated Circuit（IC） OR gate SN74AHCT1G32DBVR SOT-153/SOT23-5/SC-74A marking B32
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.8V |
| 高逻辑电平 Logic Level - High | 2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.5ns @ 0.5V，50pF |
| Description & Applications | SINGLE 2-INPUT POSITIVE-OR GATE ; Operating Range of 4.5 V to 5.5 V Max tpd of 8 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101) |
| 描述与应用 | 单2输入正或门; 工作电压范围为4.5 V至5.5 V 最大为8 ns在5 V吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V？ 输入是TTL电压兼容 闭锁性能超过250 mA每 JESD17 ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 200-V机型号（A115-A） - 1000-V带电器件模型（C101） |
