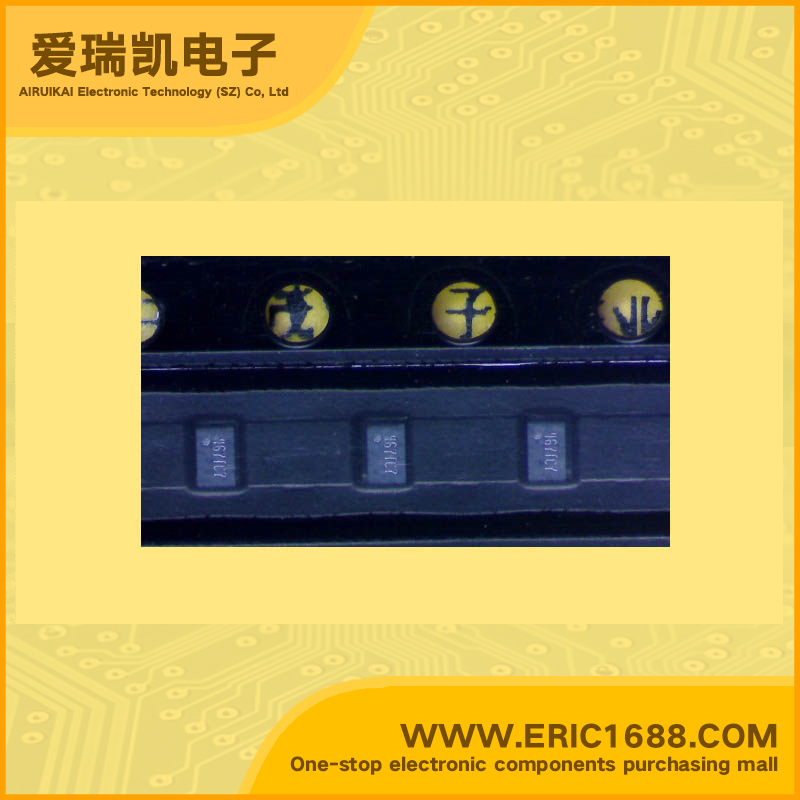

Integrated Circuit（IC） Translator SN74AVC1T45YZPR DSBGA-6 marking 467
| 逻辑类型 Logic Type | 变换器，双向，3 态 Translator, Bidirectional, 3-State |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 逻辑 Logic |
| 电源电压Vcc Voltage - Supply | 逻辑 Logic |
| 静态电流Iq Current - Quiescent (Max) | 500Mbps |
| 输出高，低电平电流 Current - Output High, Low | 1 |
| 低逻辑电平 Logic Level - Low | 1 |
| 高逻辑电平 Logic Level - High | 无/无 No/No |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.8ns |
| Description & Applications | 1.2 V ~ 3.6 V |
| 描述与应用 | SINGLE-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS This single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC1T45 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes. Available in the Texas Instruments NanoFree™ • Typical Max Data Rates Package – 500 Mbps (1.8-V to 3.3-V Translation) • Fully Configurable Dual-Rail Design Allows – 320 Mbps (<1.8-V to 3.3-V Translation) Each Port to Operate Over the Full 1.2-V to – 320 Mbps (Translate to 2.5 V or 1.8 V) 3.6-V Power-Supply Range – 280 Mbps (Translate to 1.5 V) • VCC Isolation Feature - If Either VCC Input Is at – 240 Mbps (Translate to 1.2 V) GND, Both Ports Are in the High-Impedance State • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II • DIR Input Circuit Referenced to VCCA • ESD Protection Exceeds JESD 22 • ±12-mA Output Drive at 3.3 V – 2000-V Human-Body Model (A114-A) • I/Os Are 4.6-V Tolerant – 200-V Machine Model (A115-A) • Ioff Supports Partial-Power-Down Mode Operation |
