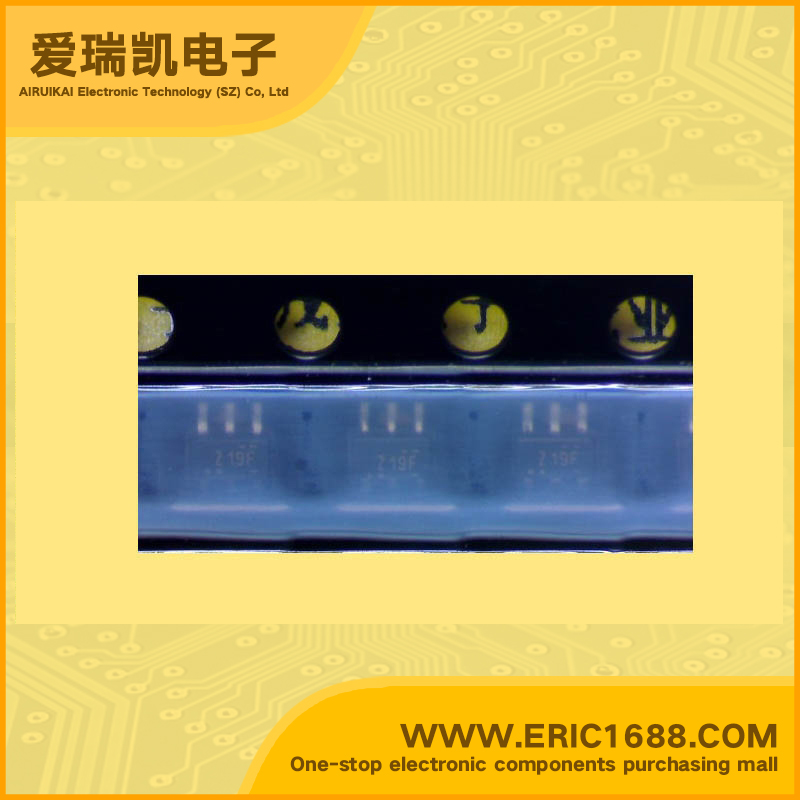

SN74LVC1G18DCKR Signal Switch, Multiplexer, Decoder SOT-363/SC70-6/TSSOP6 marking Z19F
| 逻辑类型 Logic Type | 多路分解器 Demultiplexer |
| 电路数 Number of Circuits | 1 x 1:2 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 32mA，32mA |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 1.65 V ~ 5.5 V |
| 低逻辑电平 Logic Level - Low | This noninverting demultiplexer is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC1G18 is a 1-of-2 noninverting demultiplexer with a 3-state output. This device buffers the data on input A and passes it to either output Y0 or Y1,depending on whether the state of the select (S) input is low or high, respectively.NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down. Available in the Texas Instruments NanoStar™ and NanoFree™ Packages Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 3.4 ns at 3.3 V Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V Ioff Supports Partial-Power-Down Mode Operation Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II |
| 高逻辑电平 Logic Level - High | 这个非反相多路分解器是为1.65-V到5.5 V的VCC操作。SN74LVC1G18是一个1-2同相多路分解器，有着3态输出。此设备缓冲输入A上的数据，并把它传递给输出Y0或Y1，取决于选择（S）输入的状态分别是高或低。 NanoFreeTM包装技术是IC包装概念的重大突破，使用冲模作为封装。这个装置是完全指定的部分断电应用程序使用IOFF。当断电时，IOFF电路关闭输出，防止破坏回流电流通过设备。 可用德州仪器NANOSTAR™和NanoFree™套件 支持5-V VCC操作 接受输入电压到5.5 V 在3.3 V最大TPD为4.9 ns 低功耗，10μA最大ICC ±24 mA输出驱动，在3.3 V时 IOFF支持部分断电模式操作 闭锁性能超过100 mA每JESD 78，II类 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
