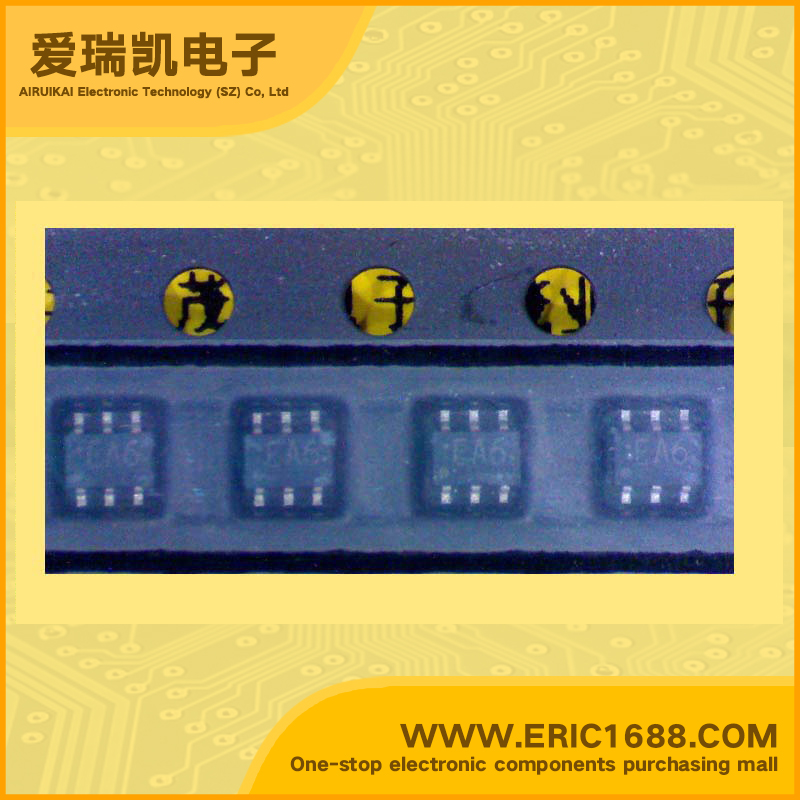

Integrated Circuit（IC） inverter TC7PAU04FU SOT-363/SSOP6 marking EA6
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 3 |
| 电源电压Vcc Voltage - Supply | 1.8V~3.6V |
| 静态电流Iq Current - Quiescent (Max) | 20µA |
| 输出高，低电平电流 Current - Output High, Low | -24mA,24mA |
| 低逻辑电平 Logic Level - Low | 0.15v~0.2v |
| 高逻辑电平 Logic Level - High | 0.8v~0.85v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 1.9ns @ 3.3V，30pF |
| Description & Applications | Dual Inverter (unbuffer) with 3.6 V Tolerant Input ；Low voltage operation: VCC = 1.8~3.6 V Quiescent supply current: ICC < 20 µA (max) VCC = 3.6 V, Ta = −40~85°C) High-speed operation: tpd = 3.5 ns (max) (VCC = 3.0~3.6 V) tpd = 4.2 ns (max) (VCC = 2.3~2.7 V) tpd = 8.4 ns (max) (VCC = 1.8 V) High-output current: IOH/IOL = ±24 mA (min) (VCC = 3.0 V) IOH/IOL = ±18 mA (min) (VCC = 2.3 V) IOH/IOL = ±6 mA (min) (VCC = 1.8 V) Latch-up performance: ±300 mA ESD Performance: ±200 V (JEITA) ±2000 V (MIL) 3.6 V tolerant function for input and power down protection are provided. |
| 描述与应用 | 双逆变器（解缓冲）与3.6 V容错输入;低电压工作：VCC=1.8〜3.6 V 静态电源电流：ICC<20μA（最大值） VCC=3.6 V，TA= -40〜85°C） 高速运行：TPD=3.5纳秒（最大值）（VCC=3.0〜3.6 V） TPD =4.2纳秒（最大值）（VCC=2.3〜2.7 V） TPD =8.4纳秒（最大值）（VCC=1.8 V） 高输出电流：IOH/ IOL=±24 mA（分钟）（VCC=3.0 V） IOH/ IOL=±18 mA（分钟）（VCC=2.3 V） IOH/ IOL=±6 mA（分钟）（VCC=1.8 V） 闭锁性能：±300毫安 ESD性能：±200 V（JEITA） ±2000 V（MIL） 3.6 V宽容输入和掉电保护功能。 |
