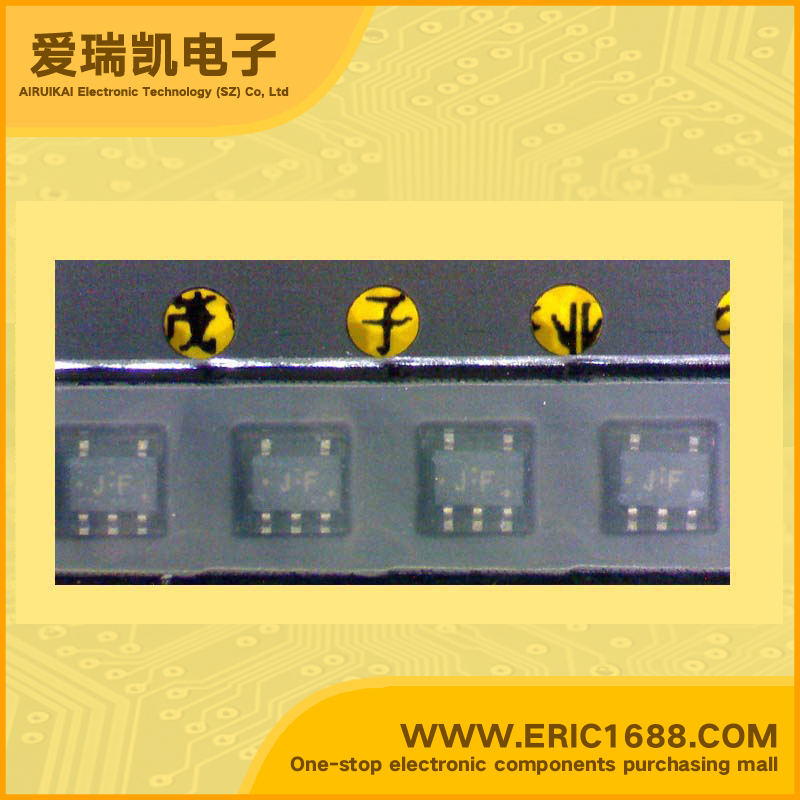

TC7SB384FU Signal Switch, Multiplexer, Decoder SOT-353/USV marking JF

Hot selling goods

Product description
逻辑类型
Logic Type
总线开关 Bus Switch
电路数
Number of Circuits
输入数
Number of Inputs
电源电压Vcc
Voltage - Supply
静态电流Iq
Current - Quiescent (Max)
单电源 Single Supply
输出高,低电平电流
Current - Output High, Low
4.5 V ~ 5.5 V
低逻辑电平
Logic Level - Low
The TC7SB384FU provides single bit of high-speed TTL-compatible switching. The low on resistance of the switch allows connections to be made with minimal propagation delay. The device is organized as just 1-bit low-impedance switch with output-enable (OE) input. When OE is low, the switch is on and data can flow from port A to port B, or vice versa. When OE is high, the switch is open and a high-impedance state exists between the two ports. All inputs are equipped with protection circuits against static discharge. Operating voltage: VCC = 4.5~5.5 V High speed operation: tpd = 0.25 ns (max) Low on resistance: RON = 5 Ω (typ.) ESD performance: Machine model > ±200 V Human body model > ±2000 V TTL level input (control input) Package: USV
高逻辑电平
Logic Level - High
TC7SB384FU提供单一位的高速TTL兼容的交换开关。低导通电阻的开关允许以最小的传播延迟连接。该设备被组织为仅有1位低阻抗开关,有着输出使能(OE)输入。当OE低,开关和数据流可以从端口A端口B,反之亦然。当OE高,开关打开和高阻抗状态之间存在着两个端口。所有输入都配有保护电路防止静电放电。 工作电压:VCC= 4.5〜5.5 V 高速运行:TPD =0.25 ns(最大) 低导通电阻RON= 5Ω(典型值) ESD性能:机器型号>±200 V 人体模式>±2000 V TTL电平输入(控制输入) 包装:USV
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
Description & Applications
描述与应用
