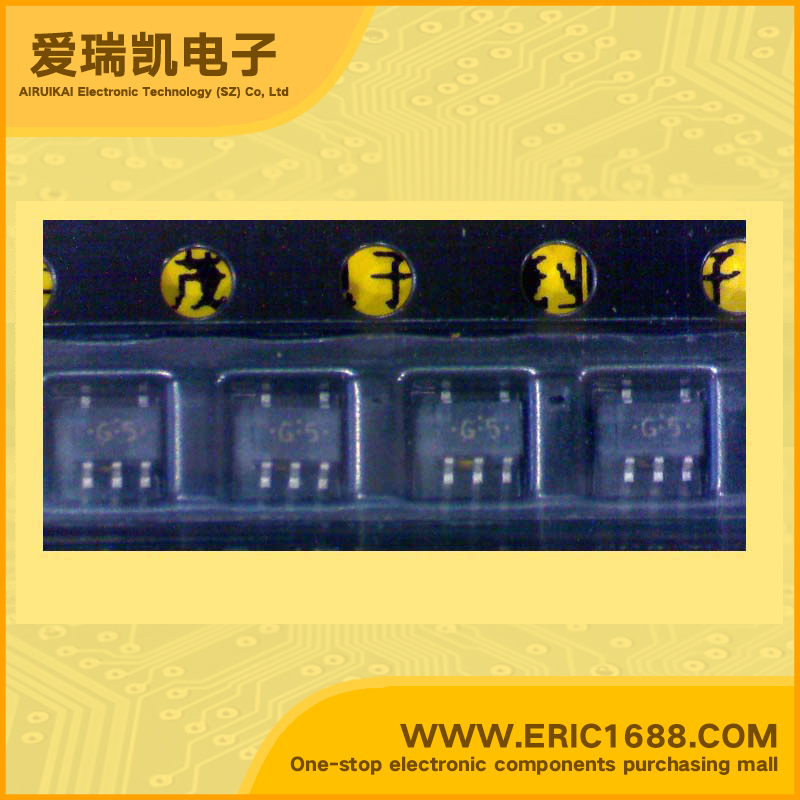

Integrated Circuit（IC） inverter TC7SET04FU SOT-353/USV marking G5
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.8v |
| 高逻辑电平 Logic Level - High | 2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 10ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | INVERTER ;High speed : tpd = 5.0 ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation : ICC = 2 μA (max) at Ta = 25°C • Compatible with TTL outputs : VIL = 0.8 V (max) VIH = 2.0 V (min) • 5.5-V tolerant input • Balanced Propagation Delays : tpLH ≈ tpHL |
| 描述与应用 | 逆变器;高速：TPD =5.0 ns（典型值） 在VCC = 5 V，CL=15PF •低功耗：ICC= 2μA（最大值）在大= 25°C •兼容TTL输出：VIL=0.8 V（最大值） VIH=2.0 V（分钟） •5.5-V宽容输入 •平衡传输延迟：TPLH≈TPHL |
