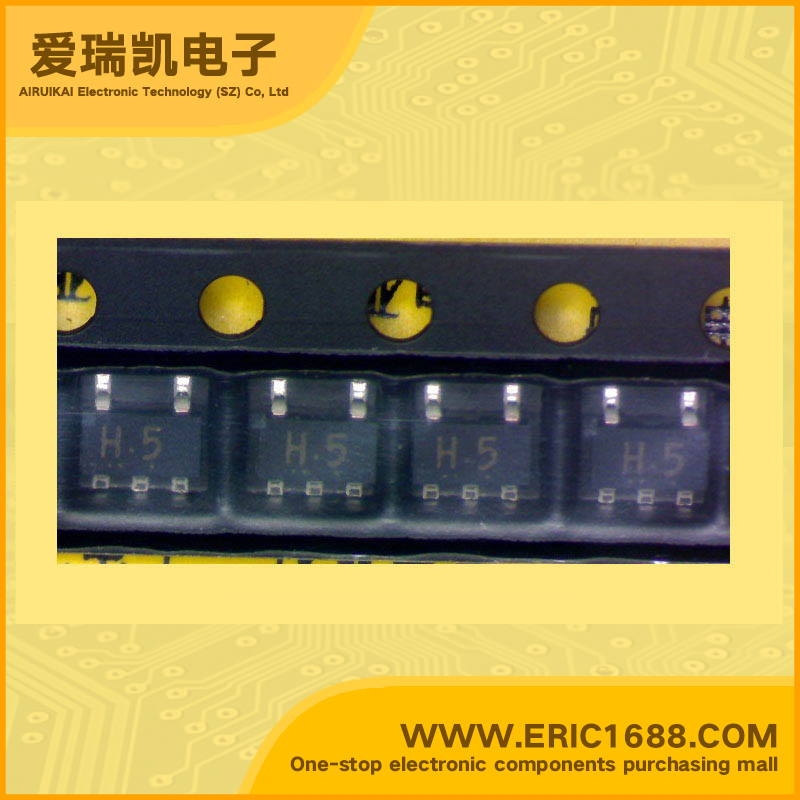

Integrated Circuit(IC) inverter TC7SH04F SOT-153/SMV marking H5

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5v
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V
高逻辑电平
Logic Level - High
1.5V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.5ns @4.5V~5.5V ,50pF
Description & ApplicationsINVERTER ;High Speed : tpd = 3.8ns (typ.) at VCC = 5V, CL = 15pF • Low power dissipation : ICC = 2 μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIH = 28% VCC (min) • 5.5-V tolerant input • Wide operating voltage range : VCC = 2 to 5.5V • Identical pin assignment and function with TC7S04
描述与应用逆变器;高速:TPD =3.8ns电源(典型值) 在VCC =5V,CL=15pF的 •低功耗:ICC= 2μA(最大值)在大= 25°C •高抗干扰性:VNIH= VNIH=28%VCC (分钟) •5.5-V宽容输入 •宽工作电压范围:VCC=2〜5.5V •相同的引脚分配和功能TC7S04
